High-speed imaging

Bonito PRO X-2620

Bonito PRO X-2620
Bonito PRO X-2620
Speed up your high-resolution application

Robust high-bandwidth camera series

Bonito PRO X-2620 with ON Semi PYTHON 25K runs 79.7 frames per second at 26.2 MP resolution.

Bookmark Remove from Bookmarks

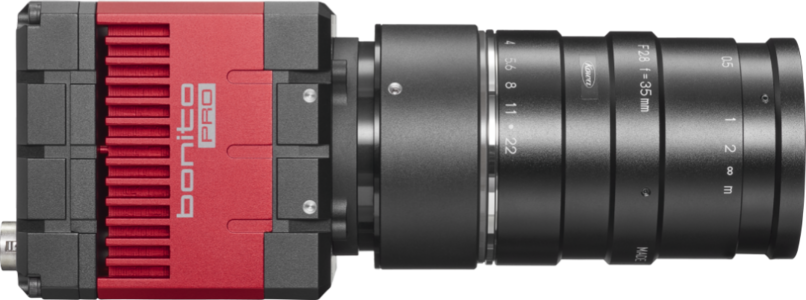

Bonito PRO is Allied Vision’s high-bandwidth camera series with a CoaXPress interface. Equipped with four DIN 1.0/2.3 connectors the camera is capable to transmit 25 Gbps via four CXP-6 high-speed connections. Bonito PRO features a rugged, fanless housing design, and powerful feature set – making it the ideal choice for high-definition imaging applications that require high throughput, robustness, and system design-in flexibility.

Technical data

Interface CoaXPress (CXP-6) 4 DIN
Resolution 5120 (H) × 5120 (V)
Sensor ON Semi PYTHON 25K
Sensor type CMOS
Sensor size Type APS-H
Pixel size 4.5 µm × 4.5 µm
Shutter mode Global shutter
Lens mounts (available) F-Mount, F-Mount PA, EF-Mount PA, M42-Mount, M42-Mount PA, M58-Mount, M58-Mount PA
Max. frame rate at full resolution 79.7 fps
ADC 10 Bit
Non-volatile memory (Flash) 1024 KB

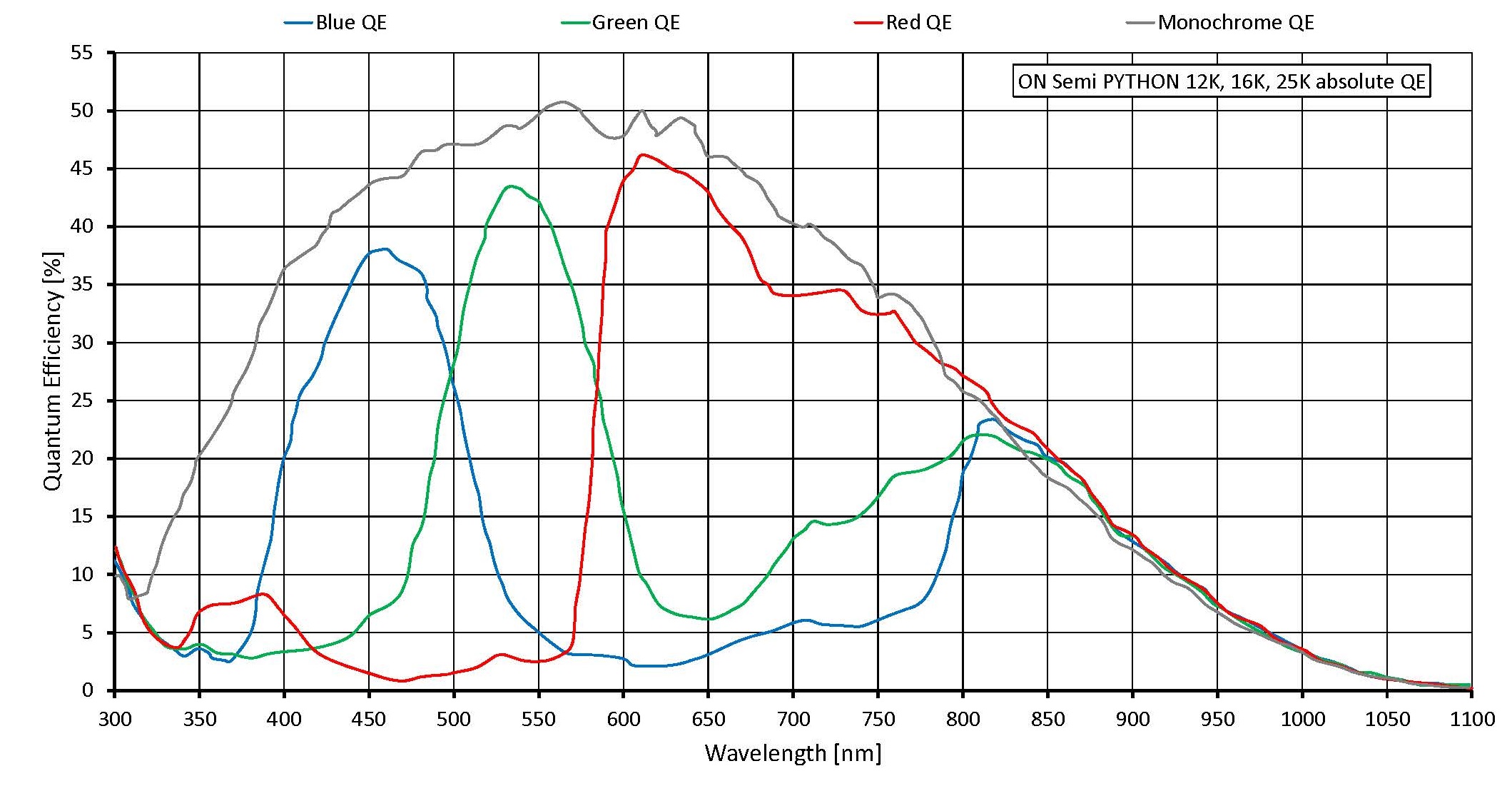

Imaging performance data is based on the evaluation methods in the EMVA 1288 Release 3.1 standard for characterization of image sensors and cameras. Measurements are typical values for monochrome models measured without optical filter.

Quantum efficiency at 529 nm 55 %
Temporal dark noise 14.7 eˉ
Saturation capacity 8100 eˉ
Dynamic range 54.4 dB
Absolute sensitivity threshold 15.5 eˉ
Bit depth 10 Bit
Monochrome pixel formats Mono8, Mono10
Raw pixel formats BayerRG8, BayerRG10
Operating temperature -20 °C to +70 °C housing (without condensation)
Power requirements (DC) 24 VDC; PoCXP
Power consumption External power: 15 W at 24 VDC | Power over CoaXPress: 15 W
Mass 500 g (with F-Mount)
Body dimensions (L × W × H in mm) 114.9 × 70 × 70 (with F-Mount and connectors)
Regulations CE: 2014/30/EU (EMC), 2011/65/EU, including amendment 2015/863/EU (RoHS); FCC Class B; CAN ICES-3 (B)

Image optimization features:

  • Auto gain (manual gain control: 0 to 22 dB)
  • Auto exposure (manual exposure control: 1 µs to 1 s)
  • Auto white balance (X-2620C only)
  • Binning (horizontal and/or vertical), (sum or average)
  • Decimation X/Y
  • Gamma correction
  • Look-up tables
  • Defect Pixel Correction
  • Fixed Pattern Noise Correction

Camera control features:

  • Multiple region of interest
  • Sequencer Control
  • Trigger over CoaXPress
  • EF lens control (order option -18)
  • Storable user sets
  • Sync out modes: Trigger ready, input, exposing, readout, imaging, strobe, GPO
  • Temperature monitoring (main board and sensor board)



Bonito PRO X-2620 is ideal for a wide range of applications including:

  • Automated Optical Inspection of flat panel displays, PCB/electronics, printings
  • 2D/3D Surface Inspection (for example, glass)
  • Aerial imaging

Firmware

FAQs and application notes

  • Knowledge base:

Search the knowledge base for technical papers.

  • Application notes overview:

Click here to search from all available application notes!

  • Application notes recommended for Bonito PRO:

3D CAD Files (STEP)

Please right-click the link of a 3D model and select save as to download the file. After downloading, unzip the STEP file. You need a 3D CAD viewer application to view and measure the STEP files. Download a STEP viewer free of charge: https://www.freecadweb.org.
