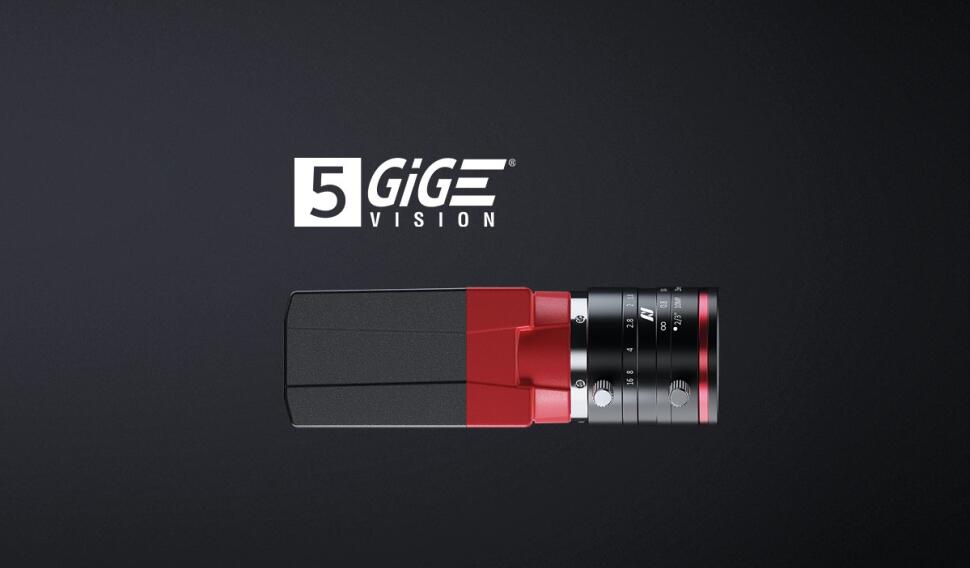

Alvium G5 combines the advantages of the 5GigE interface for higher bandwidth and the flexibility of the Alvium platform offering various mount and sensor options. It enables an easy upgrade of existing systems (USB3 Vision or GigE Vision) and offers backwards compatibility with 2.5GBASE-T (NBASE-T) or 1000BASE-T solutions. The sugar cube Alvium G5 camera delivers highest image quality at a low power consumption.
Speed Up Your Vision Application
Benefit From Higher Bandwidth And Easy Migration!

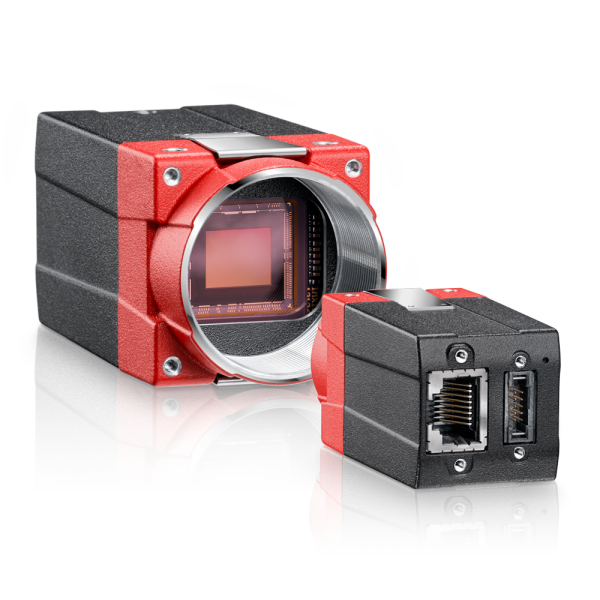

- Small sugar-cube 5GigE camera with PoE
- Easy upgrade from GigE for more performance
- Comprehensive feature set including sequencer and multi-ROI
Built For Your Vision
Alvium G5 Is The Perfect Camera For You If:
- You need a high-performance boost in a tiny package
- You want to easily scale up your system's speed, with variable link speeds of 1G, 2.5G, and 5G
- You're looking for flexibility to choose from high-performance Sony IMX sensors
- You demand industrial-grade reliability and versatility, with a rugged sugar cube design
// Benefits At A Glance
Alvium G5 is a high-performance 5GigE-Vision camera. Benefit from more bandwidth in a compact form factor!
- Speed options: Supporting variable link speeds (1G, 2.5G, 5G)
- More performance: 4.2 times more bandwidth than GigE
- Small size: Smallest 5GigE camera in the market with popular sugar cube format
- Flexibility: Easy upgrade of existing GigE or USB solutions
- High-performance sensors: Choose from 20 Sony IMX sensors
- Industrial-grade hardware: Compact housing and industrial standard hardware
// Features
- Resolution: Up to 24.6 megapixels
- Sensor: CMOS global and rolling shutter Sony IMX sensors
- Frame rates: Up to 688 frames per second
- Housing options: Closed Housing (60 mm × 29 mm × 29 mm)
- Lens mount options: C-Mount, CS-Mount, or S-Mount (M12)
- Chroma: Monochrome and color, UV, and SWIR (NIR coming soon)
- Operating temperature: -20°C to +60°C
// Liquid Lens Module
Dynamic autofocus for varying distances
Allied Vision has teamed up with Optotune to enable customers to benefit from the advantages of liquid lens functions. Allied Vision’s compact and flexible Alvium GigE Vision (Alvium G1, Alvium G5) and USB3 Vision (Avium U) cameras and liquid lenses from Optotune make a perfect team. Allied Vision cameras not only support the liquid lens functionality, but Allied Vision also completes the package with a Y-cable connecting the I/O port of the camera with the lens and external power for the lens.
Benefits for the customer:
- Ability to dynamically adjust focus
- Rapid and precise imaging even at changing distances;
- Flexibility in applications where objects are moving quickly
- Remaining signals from the I/O port are available to the M12 connector
- No need for external autofocus algorithm or external drivers to operate the lens
- Y-cable connecting the I/O port of the camera with the lens and external power for the lens available
// The Right Accessories For Every Application
We offer the various industrial grade accessories to suit your application best. Click the button below to see compatible lenses, interface and I/O connections, and tripod adapters.
- Interface cables: Various lengths, drag chain suitable and with screw lock
- Trigger and I/O cables: Cables in two different lengths with screw lock
- Interface connections: 1-port, 2-port and 4-port cards including PoE functionality
- Lenses: Tested C-Mount and S-Mount lenses
- Mounting adapters: Adapts between metric and imperial thread
// Perfectly Connected – Thanks To Powerful Software
Have you heard of Vimba X, our new fully GenICam-compliant SDK (software development kit)?
Thanks to our in-house software you can easily integrate our cameras into any system and manage them centrally.
Vimba X runs on Windows 10 and 11, Linux, Linux ARM, and macOS (all 64-bit).
With Vimba X, you can acquire images and control your Allied Vision camera instantly, program complex vision applications, or connect to third-party libraries.
