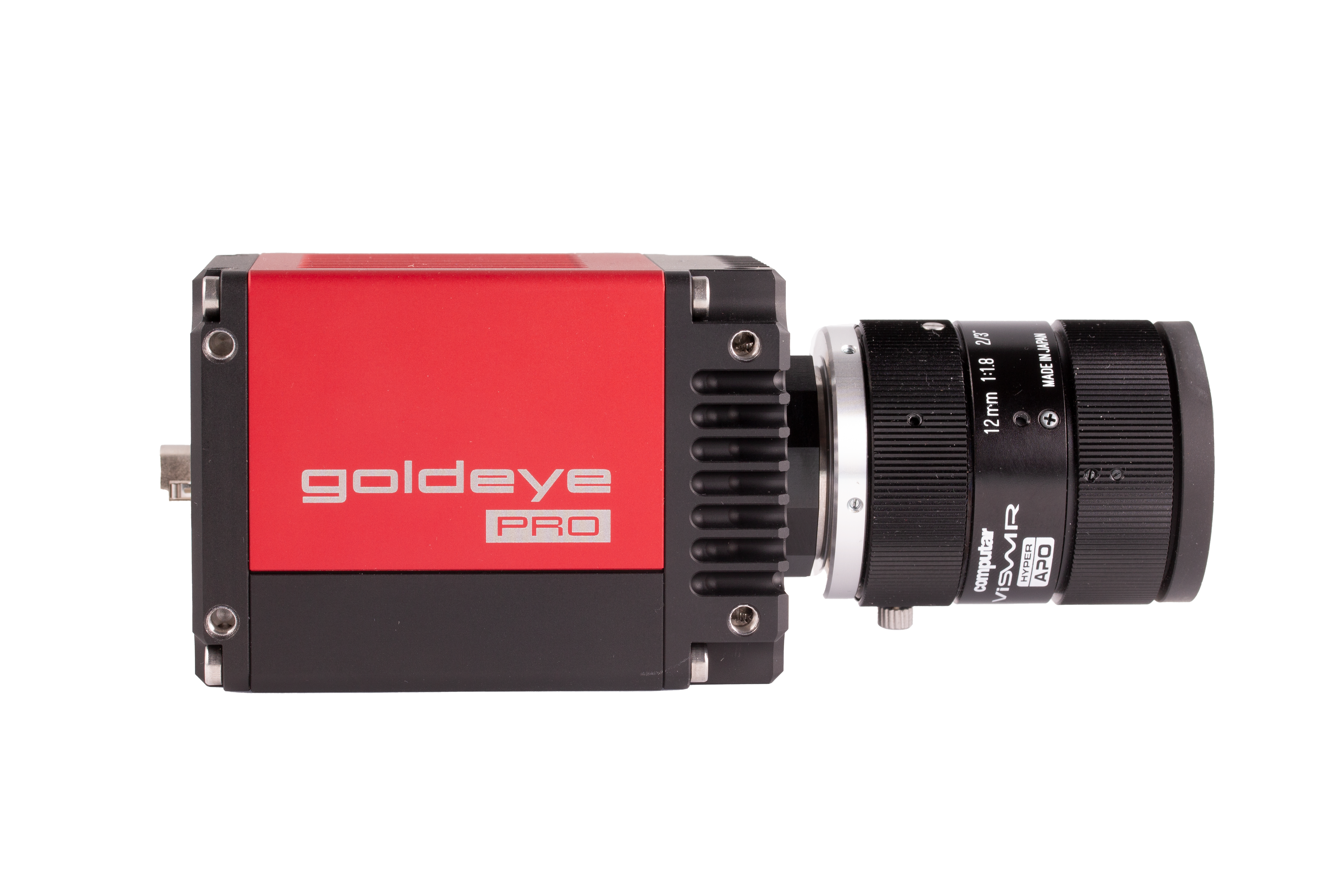

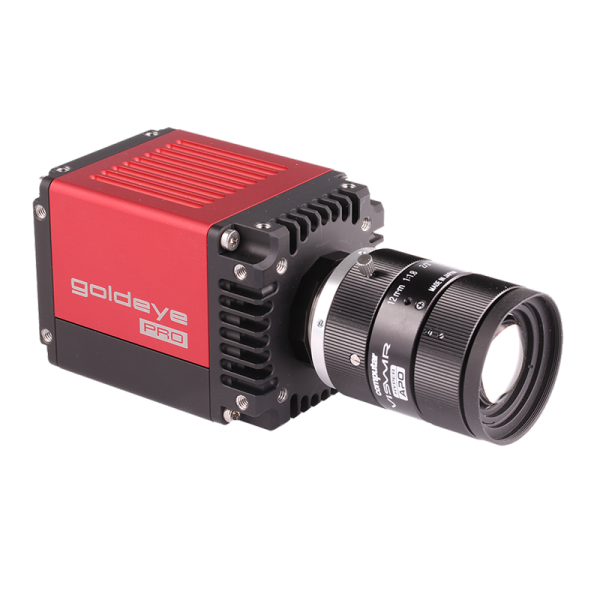

Goldeye Pro
Excellence In SWIR Image Quality
Goldeye Pro cameras with rugged housing and 5 GigE Vision interface increase the bandwidth of existing Goldeye G models by 5 times. They fill the gap for higher resolutions by additional Sony InGaAs sensors at high frame rates. The active sensor cooling and on-board image correction ensure outstanding imaging results.
Excellence In SWIR Image Quality
Goldeye Pro cameras are designed to leverage your SWIR vision system to the next level regarding throughput, quality, and imaging performance. The 5 GBit/s GigE Vision compliant interface optimally supports the bandwidth requirements of latest SWIR sensor solutions. An efficient thermoelectric cooling (TEC) stabilizes the sensor temperature. On-board image correction features facilitate reproducible image quality.
Built For Your Vision
Goldeye Pro Is The Perfect Camera For You If:
- You need exceptional SWIR image quality with high resolution and unmatched details, even at high frame rates.
- You require efficient sensor cooling for reproducible imaging results.
- Yo want to optimize your image quality with advanced correction features.
- You demand unparalleled image clarity and flexibility, with features like 12- and 10-bit sensor readout modes.
// Benefits At A Glance
Goldeye Pro cameras enable high-resolution SWIR imaging with unmatched details at high frame rates by providing best in class imaging performance.
- Efficient sensor cooling for reproducible imaging results even at changing conditions
- Highest possible resolution of 5.32 MP for IMX992 sensors
- 3.45 µm pixel size for detailed and accurate imaging
- Advanced features for optimized performance
- Unparalleled image clarity
Goldeye Pro camera series has won the VSD China Innovators Awards in Bronze, presented by Vision Systems Design China.
// Advanced Features For Excellent Image Quality
- Dark current suppression
- Automated or manually controlled thermo-electric cooling (TEC1)
- Built-in advanced image correction for optimized image quality:
Non-uniformity correction with automatic adaption, Defect pixel correction, Background correction - 12- and 10-bit sensor readout modes for highest possible dynamic range
- Region-of-Interest control to speed-up frame rates and optimize bandwidth usage
- Look-up tables to increase contrast
- User sets for simplified camera setup
- Digital binning and gain control to increase sensitivity
// Stabilized Sensor Temperatures
Thermo-electric cooling (TEC)
Goldeye Pro cameras support active and passive thermal management features. The compact, rugged industrial camera is equipped with an automated or manually controlled thermo-electric cooler (TEC1) that supports model-specific both sensor cooling and heating to optimize the adoption to environmental conditions (typical ΔT= 30K) and ensure reproduceable imaging results.
The active sensor cooling is supported by the robust heat dissipative alluminum housing enabling an extended operating temperature range for Goldeye Pro cameras.
// The Right Accessories For Every Application

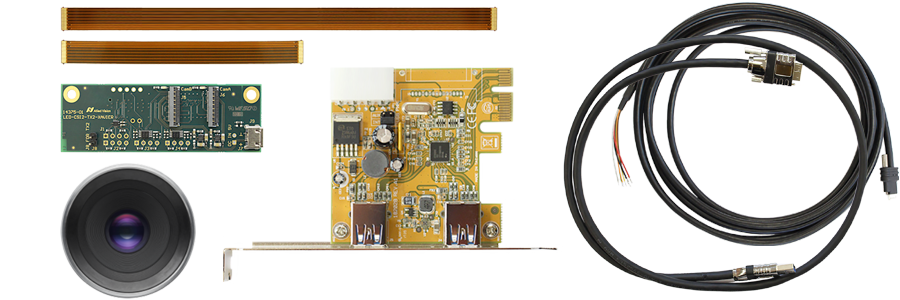

The Goldeye Pro camera series can be equipped with several accessories.
- GigE interface cables
- Lenses
- Spectral filters
- Trigger and I/O cables: Cables with different length and shielding class
- Power supply: Mains power adapter for worldwide use
- Heat sink
// Flexible Connectivity – Connect Via Vimba X
Have you heard of Vimba X, our platform independent SDK (software development kit)? Thanks to our in-house software you can easily integrate Goldeye Pro cameras with GigE Vision interface into any system and manage them centrally. Vimba X runs on Windows, Linux, and Linux for ARM. With Vimba X, you can acquire images and control your Allied Vision camera instantly, program complex vision applications or connect to third-party libraries.
Vimba X SDK
