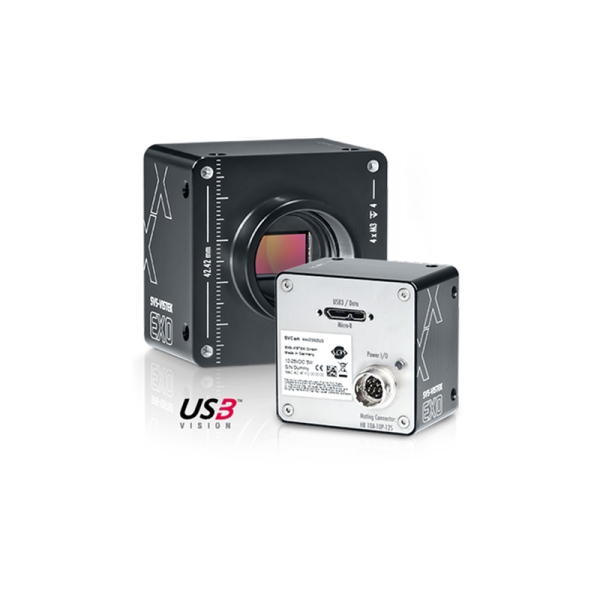

EXO USB3

The EXO with USB3.1 is a compact GenICam 3.0 camera for the industrial sector, with a wide range of sensors on the market which offers resolutions from 2.3 MP (160 fps) to 31.4 MP (12 fps).

Made for the industrial sector

With a real data rate of up to 360 MB/s net, it is very well suited for the most common resolutions and frame rates.

Unibody housing, up to 60°C operating temperature
LUT, binning, ROI
Electrical and optical inputs

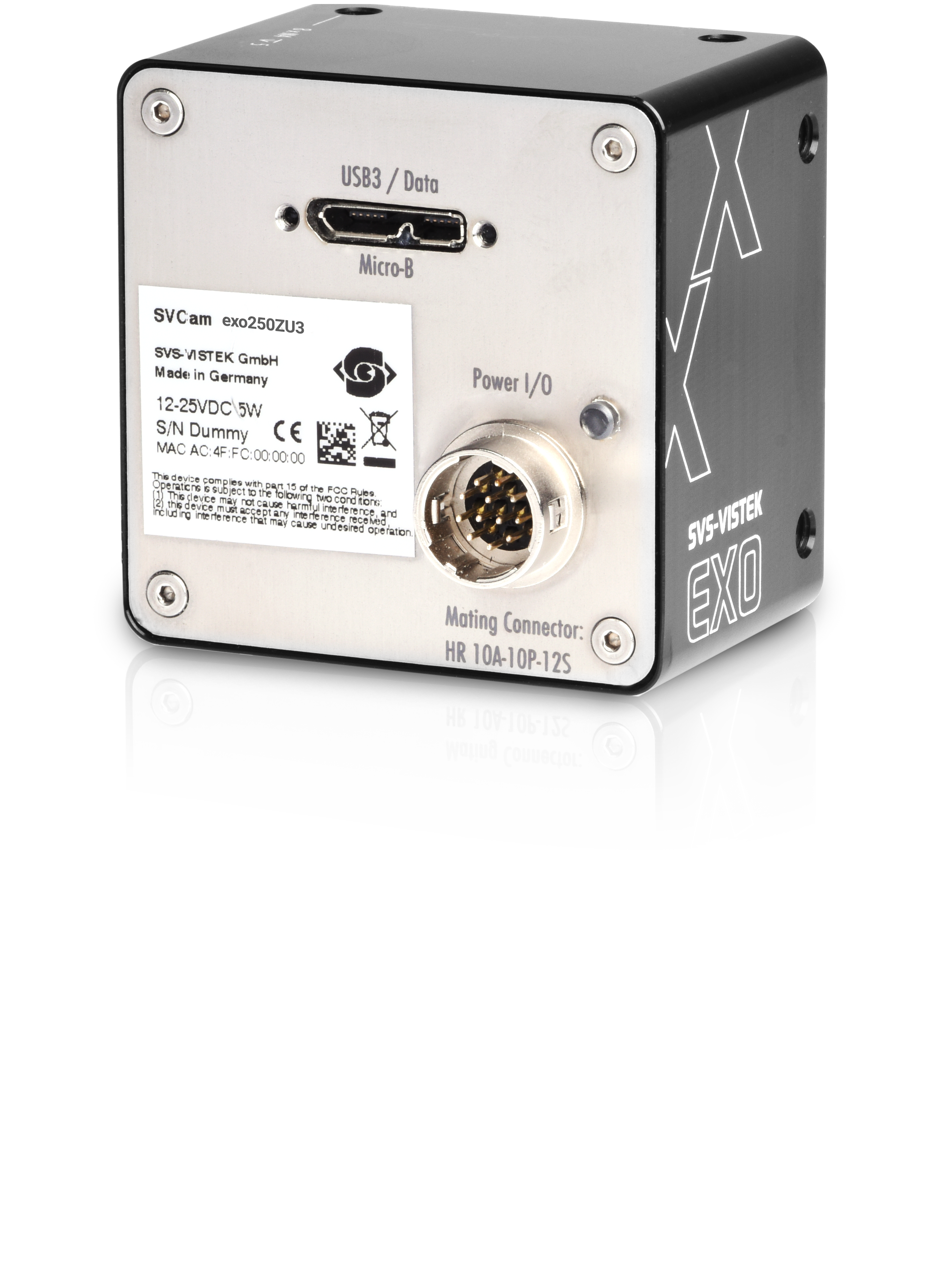

IO interface with 2xIN, 4xOUT, opto and RS232
Integrated 4-channel GenICam LED strobe controller
IO with SafeTrigger, programmable timers, logic functions and sequencer

Areas of application

Especially in plant engineering, where short connection cables are generally used, the fast and robust USB3.1 interface can fully exploit the advantages of the EXO.

The integrated GenICam strobe controller also enables lean and cost-efficient application designs.
