Prosilica GT 6400

Prosilica GT 6400
Prosilica GT 6400
Engineered for every environment

High-resolution cameras for demanding applications

Prosilica GT 6400 with Sony IMX342 runs 3.8 frames per second at 31.4 MP resolution.

The rugged housing optimized for heat dissipation makes Prosilica GT the ideal solution for harsh environments. The various lens control options allow constant adjustment of the image brightness to changing light conditions. Offering resolutions of up to 31 megapixels, they are ideal for high-definition imaging applications with demanding requirements of robustness and design-in flexibility.

Technical data

Interface IEEE 802.3 1000BASE-T, IEEE 802.3af (PoE)
Resolution 6480 (H) × 4860 (V)
Sensor Sony IMX342
Sensor type CMOS
Sensor size Type APS-C
Pixel size 3.45 µm × 3.45 µm
Shutter mode GS (Global shutter)
Lens mounts (available) F-Mount
Max. frame rate at full resolution 3.82 fps
ADC 12 Bit
Image buffer (RAM) 128 MByte

Imaging performance data is based on the evaluation methods in the EMVA 1288 Release 3.1 standard for characterization of image sensors and cameras. Measurements are typical values for monochrome models measured at a 6280 (H) × 4660 (V) region of interest without optical filter.

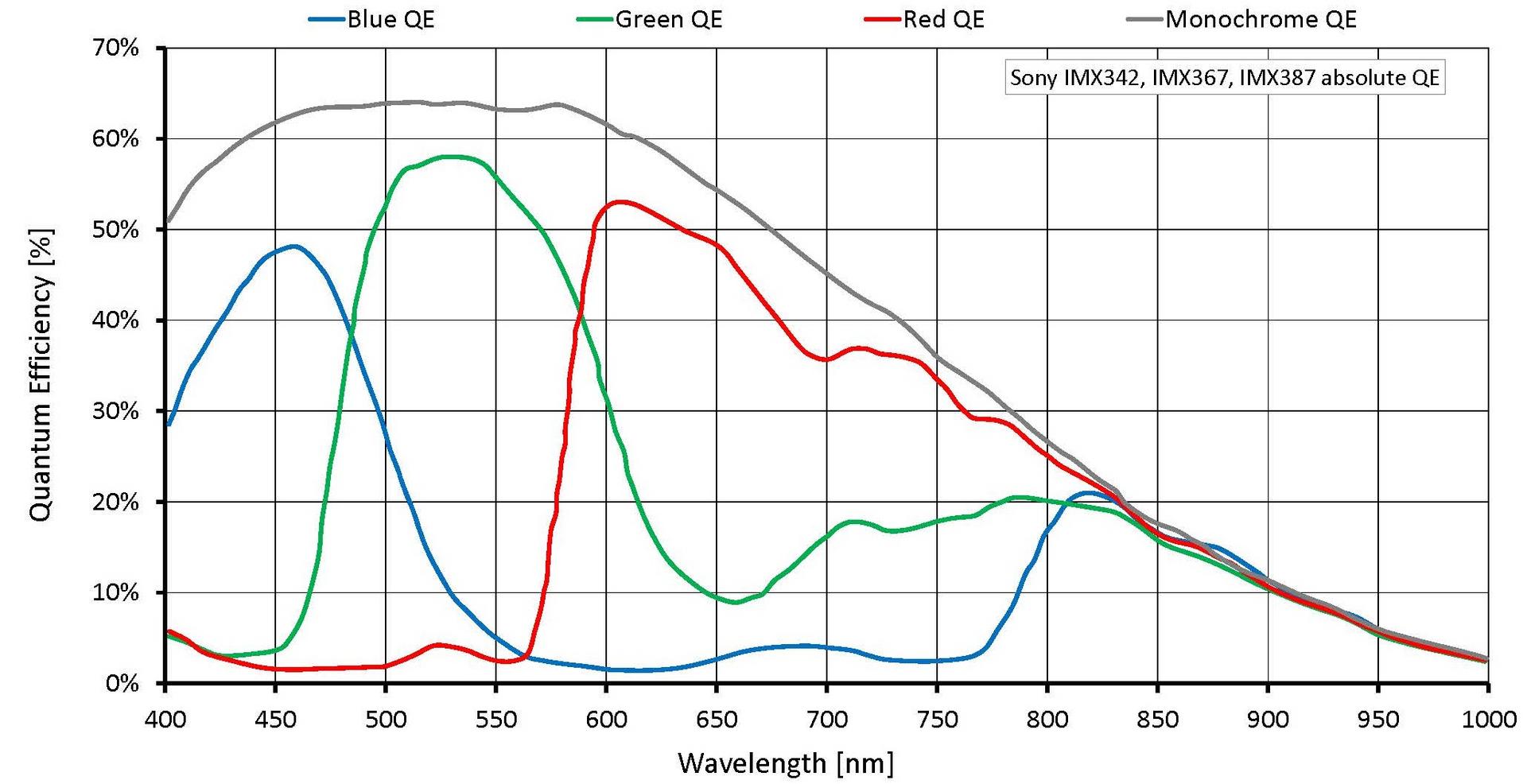

Quantum efficiency at 529 nm 64 %
Temporal dark noise 2.3 eˉ
Saturation capacity 10300 eˉ
Dynamic range 72 dB
Absolute sensitivity threshold 2.7 eˉ
Bit depth 12-bit
Monochrome pixel formats Mono8, Mono12Packed, Mono12
Raw pixel formats BayerRG8, BayerRG12, BayerRG12Packed
Operating temperature -20 °C to +50 °C housing (without condensation)
Power requirements (DC) 7 to 25 VDC AUX or IEEE 802.3at Type 1 PoE
Power consumption External power: 5.4 W at 12 VDC | Power over Ethernet: 6.7 W
Mass 372 g
Body dimensions (L × W × H in mm) 96 × 66 × 53.3 (including connectors)
Regulations CE: 2014/30/EU (EMC), 2011/65/EU, including amendment 2015/863/EU (RoHS); FCC Class A; CAN ICES-3 (A)

Image control: Auto

  • Auto exposure
  • Auto gain
  • Auto white balance (color models)



Image control: Other

  • Binning
  • Black level
  • Color transformation (incl. hue, saturation; color models)
  • Decimation
  • DPC (defect pixel correction)
  • Gamma
  • LUT (look-up table)
  • Reverse X/Y
  • ROI (region of interest)



Camera control

  • Acquisition frame rate
  • Auto iris
  • Bandwidth control
  • EF Mount lens control
  • Event channel
  • Firmware update in the field
  • I/O and trigger control
  • Image chunk data
  • Stream hold
  • Temperature monitoring
  • ToE (trigger over Ethernet, action commands)
  • User sets

Prosilica GT6400 is ideal for a wide range of applications including:

  • Industrial inspection including display inspection, surface inspection, semiconductor packaging inspection, print inspection, 2D/3D metrology, laser beam profiling, and automated optical inspection
  • Outdoor imaging applications including railway inspection, aerial imaging, traffic and transportation, surveillance, and defense
  • Medical and life sciences applications including lab and biomedical imaging, pharma and cosmetic inspection, track and trace applications
  • Archival imaging of documents and digitization of film
