General
| Model: | 3DPIXA pro dual 5µm HR |
| Product code(s): | CP000520-D02-005-0035 |

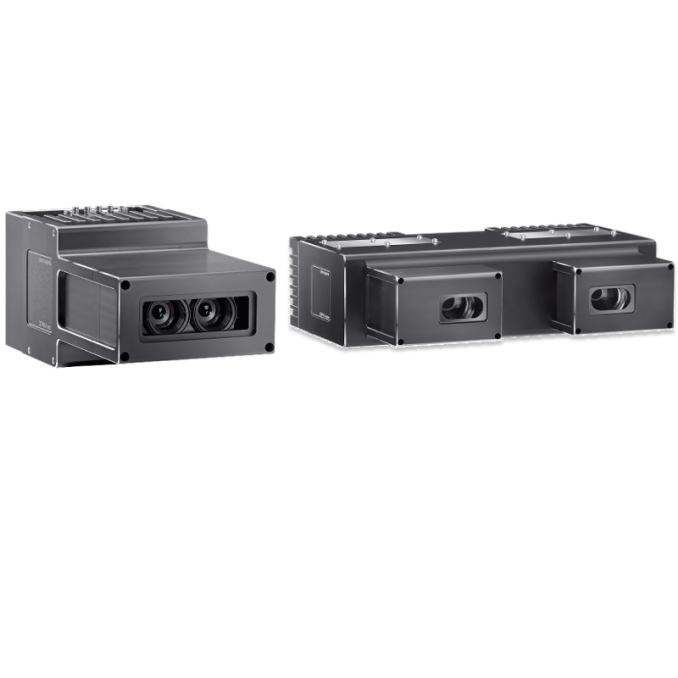

| Product series: | 3DPIXA |
| Status: | Available |
Sensor
| Sensor type: | Line scan 3D |
| Chroma: | Color |
| Spectrum: | Visible |
| Spectral range: | 1000 nm to 1000 nm |
| Sensor architecture (material): | ccd |
Pixel formats
| Data format: | 3× 8 Bit color |
| Sensor bit depth: | 14-bit |
Timing and gain
| Max. line rate tri-linear: | 29 kHz |
I/Os and power
| I/O connector: | External IO (15 pin D-Sub, female) |
| Power supply: | 12 to 24 VDC |
| Power consumption: | External: 38 W |
Mechanical properties
| IP class: | IP50 |
| Lens mount(s): | - |
| Weight: | 12000 g |
On-board memory and FPGA
| Non-volatile memory (Flash): | 4 KByte |
| User data memory: | No separate memory space |
Interfaces
| Digital interface: | camera link @ 85 mhz full, medium, base |
| Interface connector: | Camera Link (MDR) |
| Vision standard: | Camera Link |
FW features - image control
| Exposure modes: | manual |
| Gain modes: | manual, auto |
| White balance modes: | manual, auto |
| Image control features: | Brightness and Contrast, Gamma, Flash (Multi field imaging) |
FW features - camera control
| Trigger modes/sync: | freerun, internal, software-trigger, software, external-trigger, external, line-trigger, frame-trigger, encoder |
| Camera control features: | Yes |
3DPIXA pro dual 5µm HR
Digital Interface
Camera Link @ 85 Mhz Full, Medium, Base
