Machine Vision Development Kit

All major machine vision interfaces available on a single development board

Accelerate your machine vision development with a powerful, all-in-one platform. Our advanced development board integrates all major machine vision interfaces, including GigE Vision, CoaXPress, and USB3 Vision, delivering maximum flexibility for demanding applications. Built to support Sony IMX Pregius sensors and MIPI CSI-2, it enables high-performance image acquisition with GigE Vision speeds up to 10 Gbps and CoaXPress up to CXP-12. Fully compatible with Enclustra Mercury FPGA modules, this platform provides a scalable and future-ready foundation for your next innovation.

Where To Buy

Highlights

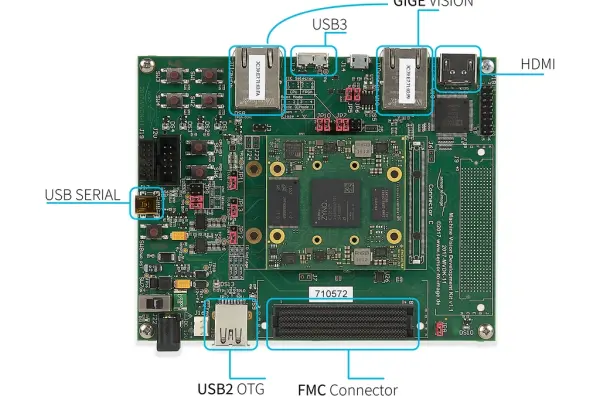

MVDK description

Allied Vision’s MVDK (Machine Vision Development Kit) is a versatile hardware platform designed to simplify the evaluation and development of products built on Allied Vision IP Cores, supporting all major industrial vision interfaces. Its base board is highly configurable using FMCs (FPGA Mezzanine Cards), providing seamless connectivity to vision sensors and enabling the creation of GigE Vision, USB3 Vision, and CoaXPress cameras, as well as GigE Vision and CoaXPress host designs.

The MVDK comes equipped with an Enclustra Mercury FPGA module and an FMC interface board, complete with a fully functional reference design. This combination accelerates development, delivers high performance in a compact footprint, and provides the flexibility needed to tailor your design to specific requirements.

Main Benefits

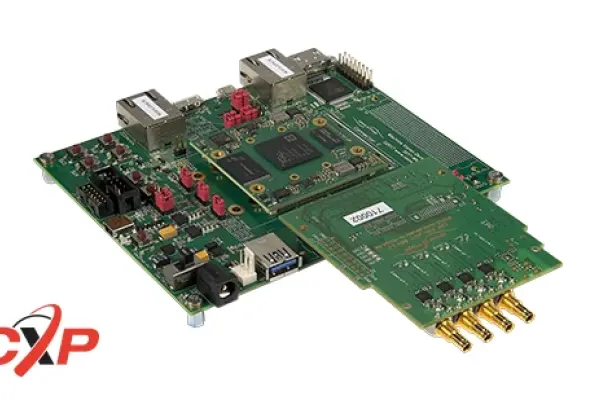

For CoaXPress development

The MVDK for CoaXPress development features an FMC equipped with two or four CXP-6 or CXP-12 connections, supporting both device (camera) and host (frame grabber) designs. Its reference designs are fully compliant with CoaXPress standards, ensuring seamless development and integration.

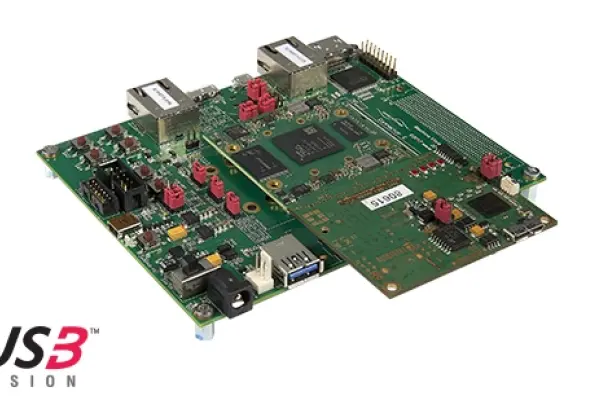

For USB3 Vision development

The MVDK for USB3 Vision development leverages 5-Gbit/s standard USB3 technology, providing a cost-effective solution for high-speed camera design. The USB3 Vision IP Core development kit is fully GenICam-compliant and A3-certified, making it the simplest way to start designing a new USB3 Vision camera. The interface is implemented via an AV-designed FMC featuring a Cypress FX3 USB3 chip, ensuring reliable and efficient performance.

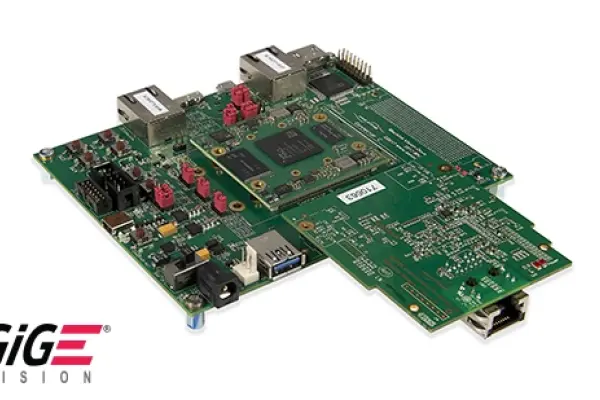

For GigE Vision development

Designed for high-speed networking, the MVDK for GigE Vision allows development of cameras and host systems fully compliant with the A3 GigE Vision specification, supporting data rates up to 10 Gbps. Applications at 2.5, 5, and 10 Gbps utilize the Allied Vision NBase-T FMC module for reliable, high-performance operation.

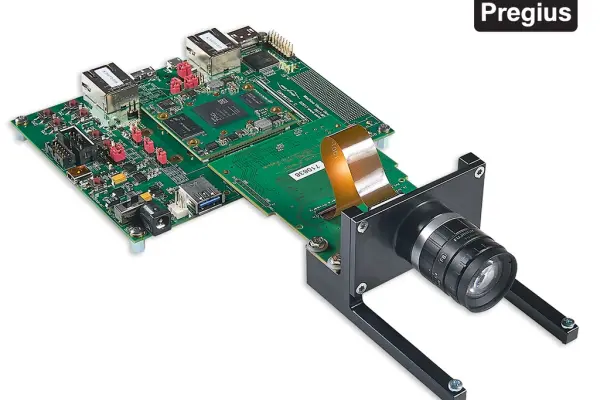

For Sony IMX development

The MVDK fully supports Sony’s IMX Pregius sensor series, a widely used line of high-quality CMOS imagers. Allied Vision provides dedicated IP for seamless sensor data acquisition and control. The reference design combines the IMX IP Core with a GigE Vision-compliant output, enabling efficient development of high-performance imaging solutions.

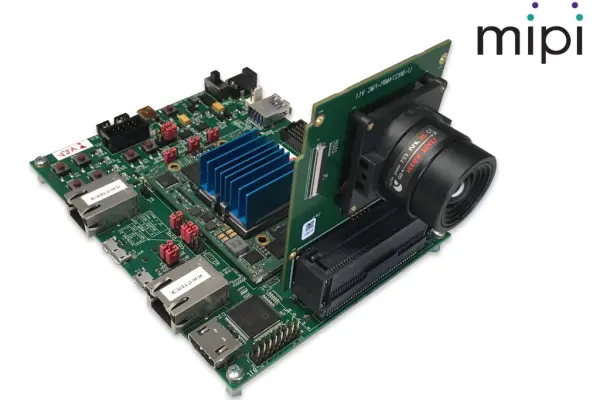

For MIPI CSI-2 development

The MVDK with the MIPI CSI-2 receiver IP Core enables the development of cameras using widely adopted, high-quality MIPI CSI-2-compliant imagers. Allied Vision provides dedicated IP to acquire data from and control these sensors. The reference design pairs the MIPI CSI-2 receiver IP Core with a GigE Vision-compliant output, delivering a streamlined path from sensor to system.

Multiple Enclustra Mercury Models Available

2x 10/100/1000 Ethernet (PS based and PL based) (the latter is used for GigE Vision)
USB 3.0, implemented with PTN36241BBS driver
USB 2.0 OTG & USB Serial
4 User LEDs and 4 User Push-Buttons
12 Test Pins
HDMI Output, implemented with ADI ADV7511
1 or 2 FMC connectors to connect camera modules or additional interface modules

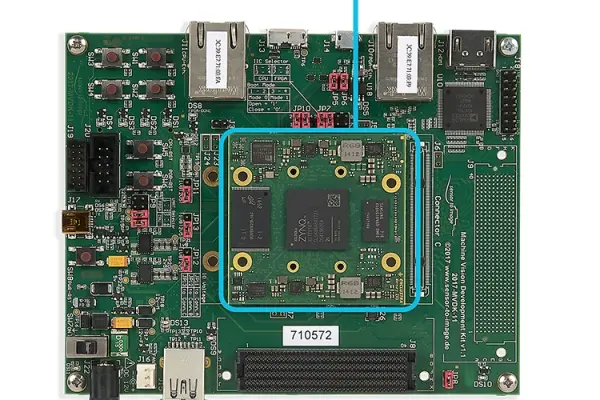

MVDK ZX5: MVDK board with Enclustra Mercury ZX5 Module

AMD Zynq-7000-series SoC FPGA 7015
1 GB DDR3 SDRAM with 512 MB NAND Flash
64 MB quad SPI Flash
10/100/1000 Ethernet PHY
Four 6.25 Gb/s transceivers

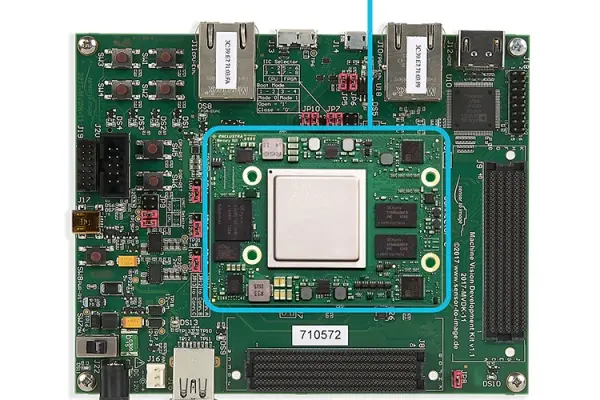

MVDK XU1: MVDK board with Enclustra Mercury+ XU1 Module

AMD Zynq Ultrascale+ MPSoC XCZU6
2 GB DDR4 ECC SDRAM with 64 MB quad SPI Flash
16 GB eMMC Flash
10/100/1000 Ethernet PHY
8+3 16 Gb/s transceivers (using both FMC connectors)
