Alvium 1800 C-158

Alvium 1800 C -158
Alvium 1800 C -158
Alvium 1800 C – High-performance camera modules for embedded vision

Machine vision sensors for embedded system developers

Alvium 1800 C-158 with Sony IMX273 runs 157.0 frames per second at 1.6 MP resolution.

Configure

The powerful Alvium 1800 C MIPI CSI-2 camera series gives embedded system developers access to Sony’s high-performance image sensors popular in the machine vision industry. These sensors with resolutions up to 20 megapixels deliver excellent image quality and up to twice the frame rates compared to similar Alvium 1500 C models.

Technical data

Interface MIPI CSI-2, up to 4 lanes
Resolution 1456 (H) × 1088 (V)
Sensor Sony IMX273
Sensor type CMOS
Sensor size Type 1/2.9
Pixel size 3.45 µm × 3.45 µm
Shutter mode GS (Global shutter)
Lens mounts (available) C-Mount, CS-Mount, S-Mount
Max. frame rate at full resolution 157 fps using 4 lanes, RAW8 (GREY)
ADC 12 Bit
Image buffer (RAM) 256 KByte
Non-volatile memory (Flash) 1024 KByte

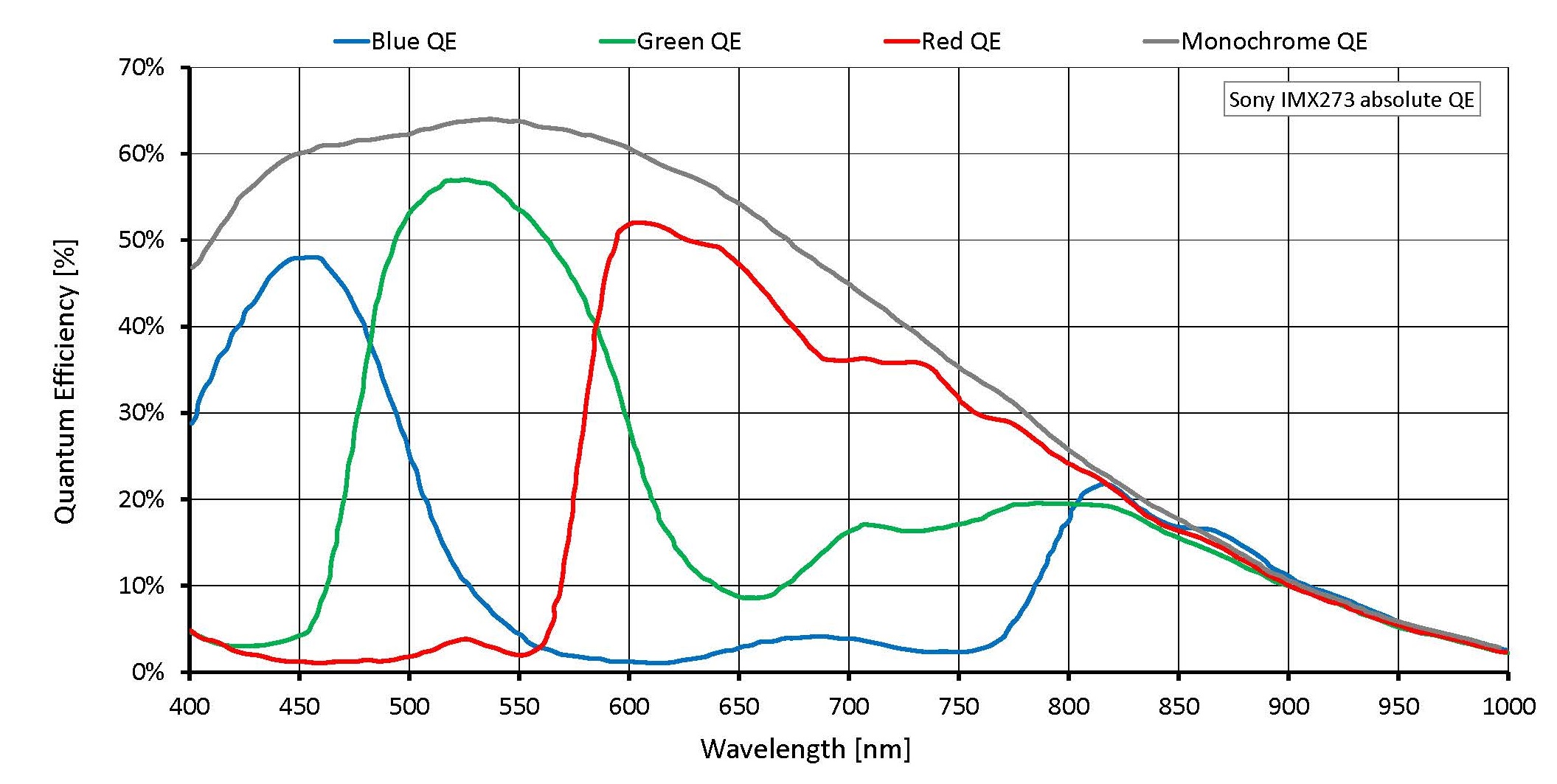

Imaging performance data is based on the evaluation methods in the EMVA 1288 Release 3.1 standard for characterization of image sensors and cameras. Measurements are typical values for monochrome models measured without optical filter.

Quantum efficiency at 529 nm 64 %
Temporal dark noise 2.1 eˉ
Saturation capacity 10400 eˉ
Dynamic range 72 dB
Absolute sensitivity threshold 2.7 eˉ
Bit depth 8-bit, 10-bit, 12-bit; Adaptive (10-bit, 12-bit)
Monochrome pixel formats PFNC: Mono8, Mono10, Mono10p, Mono12, Mono12p | CSI-2: RAW8 , RAW10, RAW12 | FOURCC: GREY, Y10, Y12
Raw color pixel formats PFNC: BayerGR8, BayerGR10, BayerGR10p, BayerGR12, BayerGR12p
TTL I/Os 2 programmable GPIOs
Power requirements (DC) 5 VDC over MIPI CSI-2
Power consumption Typical: 2.4 W

Image control: Auto

  • Auto exposure
  • Auto gain
  • Auto white balance (color models)



Image control: Other

  • Black level
  • Color transformation (incl. hue, saturation; color models)
  • De-Bayering up to 5×5 (color models)
  • DPC (defect pixel correction)
  • FPNC (fixed pattern noise correction)
  • Gamma
  • Reverse X/Y
  • ROI (region of interest)



Camera control

  • Acquisition frame rate
  • Firmware update in the field
  • I/O and trigger control
  • Temperature monitoring

Software and firmware

FAQs and application notes

  • Knowledge base:

Search the knowledge base for technical papers.

  • Application notes overview:

Click here to search from all available application notes!

  • Application notes recommended for Alvium CSI-2 cameras:

Data sheets

3D CAD files (STEP) for Alvium cameras and accessories

You can download STEP components for Alvium models and Alvium accessories at the Alvium STEP file download page.

Or you can download prepared sets of components for standard Alvium models like this:



  1. You need a 3D CAD viewer application to view and measure the STEP files. Download a STEP viewer free of charge: https://www.freecadweb.org.
  2. Go to the Camera Selector, select your Alvium model, and configure the corresponding hardware option (such as an Open Housing C-Mount camera).
  3. In the tile showing your Alvium submodel, open the "STEP files" link. See the image below.
  4. Download the files from the link selection shown at the bottom of the tile.
  5. To assemble housed cameras from the STEP file components, follow the Instructions included in the link collection.
