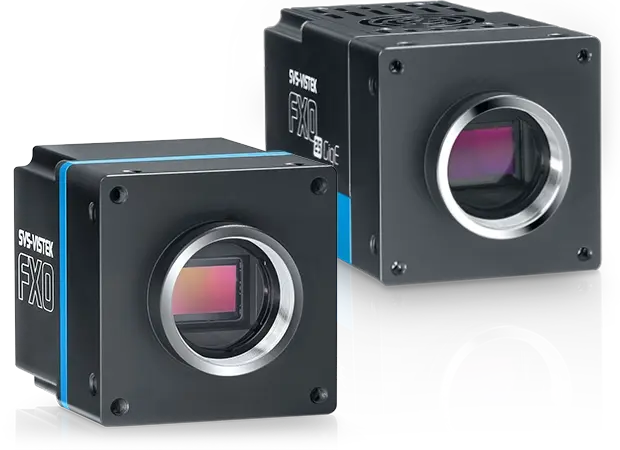

svs seriesimg fxo titelbild serie id77 800

General

Model: fxo992MCX
Product code(s): F002337
Product series: FXO SWIR
Status: Available

Sensor

Sensor type: Area scan
Chroma: Mono
Spectrum: SWIR, Visible SWIR
Spectral range: 400 nm to 1700 nm
Resolution: 2,560 × 2,048 (5.20 MP)
Sensor model: Sony IMX992-AABJ
Sensor architecture (material): cmos
Shutter type(s): global-shutter
Sensor size: 8.83 × 7.07 mm (11.31 mm, 11.4mm (Type 1/1.4))
Pixel size: 3.45 µm × 3.45 µm

Pixel formats

Monochrome pixel formats: mono10, mono12, mono8

Timing and gain

Max. frame rate: 132.6 fps
Gain: 0.0 dB to 42.0 dB

I/Os and power

Non-isolated lines: 0 x LVDS input, 0 x LVDS output0 x TTL input, 0 x TTL output, 2 x 24V input, 4 x Open drain output
Specific non-isolated lines: 1 x RS232 input, 1 x RS232 output, 0 x RS422 input, 0 x RS422 output
Opto-isolated lines: 1 x Optical isolated input, 0 x Optical isolated Input,
Power supply: 10 to 25VDC
Power consumption: External: 7 W (typical at 12 VDC)

Operating conditions

Operating temperature (housing): -10 °C to 60 °C

Mechanical properties

Body dimensions (L x W x H in mm): 70 × 50 × 50
IP class: IP30
Lens mount(s): C-Mount
Weight: 240 g

On-board memory and FPGA

Non-volatile memory (Flash): 32000 KByte

Interfaces

Digital interface: cxp-12 with 1 connection
Interface connector: (micro-BNC)
数据表 (pdf)

fxo992MCX

分辨率

2,560 × 2,048 (5.20 MP)

帧率

132.6 fps

数字接口

CXP-12 with 1 connection
