Alvium 1500 C-210

Alvium 1500 C -210
Alvium 1500 C -210
Alvium 1500 C – Powerful camera modules for embedded vision

Revolutionary MIPI CSI-2 camera module

Alvium 1500 C-210 with ON Semi AR0521SR (HD mode) runs 119.0 frames per second at 2.1 MP resolution.

Configure

Alvium 1500 C is a revolutionary MIPI CSI-2 camera optimized for embedded vision applications. The Alvium 1500 C offers the performance and versatility of industrial cameras for the embedded world. Equipped with industrial-grade CMOS sensors from ON Semiconductor, Alvium 1500 C cameras deliver excellent image quality and high frame rates.

The standardized CSI-2 driver ensures quick integration with the flexibility to change camera models easily.

Technical data

Interface MIPI CSI-2, up to 4 lanes
Resolution 1928 (H) × 1088 (V)
Sensor ON Semi AR0521SR (HD mode)
Sensor type CMOS
Sensor size Type 1/3.6
Pixel size 2.2 µm × 2.2 µm
Shutter mode Rolling shutter
Lens mounts (available) C-Mount
Max. frame rate at full resolution 119 fps using 2 to 4 lanes, RAW8 (GREY)
ADC 10 Bit
Image buffer (RAM) 256 KByte
Non-volatile memory (Flash) 1024 KByte

Imaging performance data is based on the evaluation methods in the EMVA 1288 Release 3.1 standard for characterization of image sensors and cameras. Measurements are typical values for monochrome models measured without optical filter.

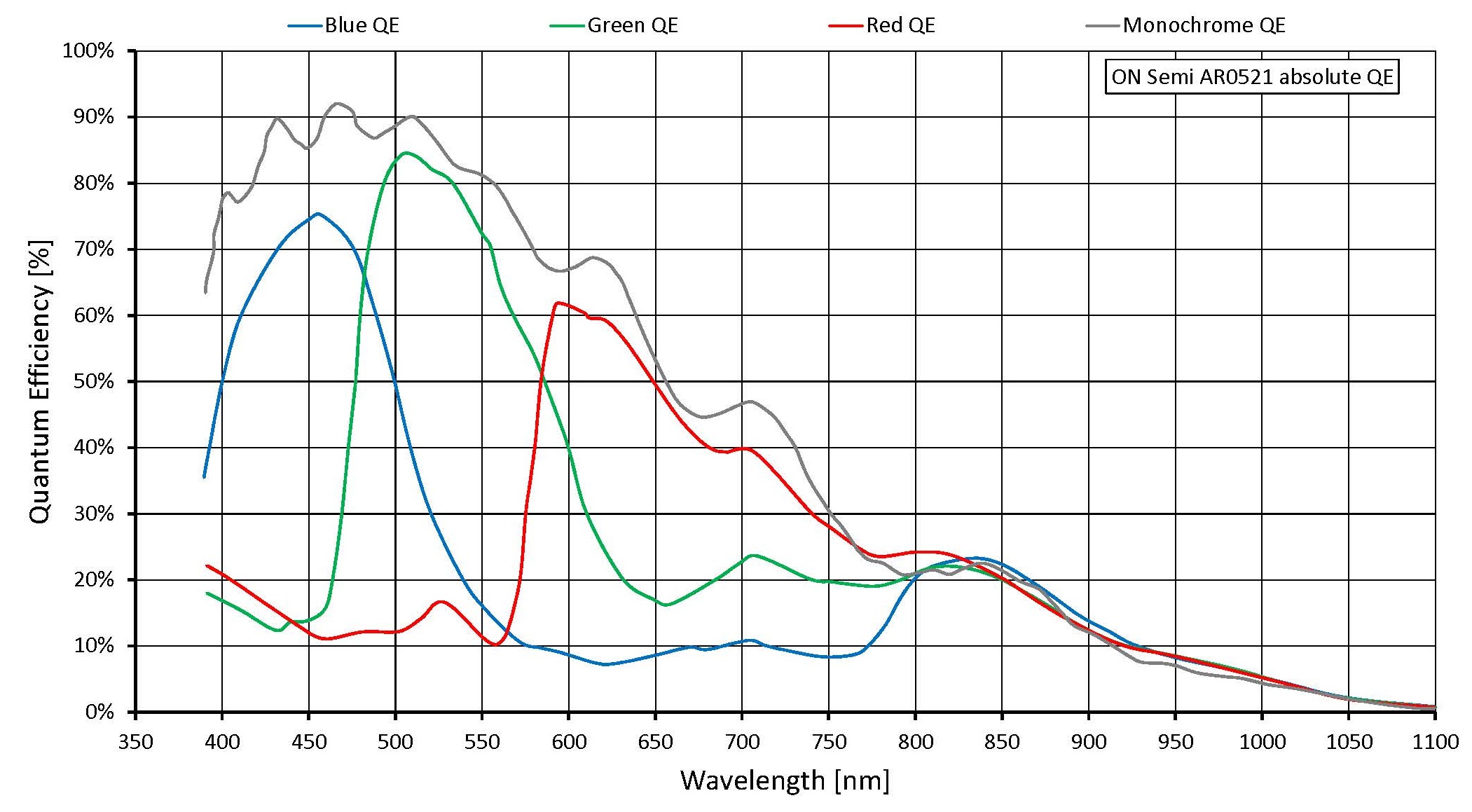

Quantum efficiency at 529 nm 79 %
Temporal dark noise 5.9 eˉ
Saturation capacity 9890 eˉ
Dynamic range 63 dB
Absolute sensitivity threshold 7.1 eˉ
Bit depth 10-bit Bit
Raw pixel formats RAW8 (GREY), RAW10 (Y10) [MIPI CSI-2 (FOURCC)]
TTL I/Os 2 programmable GPIOs
Power requirements (DC) 5 VDC over MIPI CSI-2
Power consumption Typical: 1.9 W

Image control: Auto

  • Auto exposure
  • Auto gain
  • Auto white balance (color models)



Image control: Other

  • Black level
  • Color transformation (incl. hue, saturation; color models)
  • De-Bayering up to 5×5 (color models)
  • DPC (defect pixel correction)
  • FPNC (fixed pattern noise correction)
  • Gamma
  • Reverse X/Y
  • ROI (region of interest)



Camera control

  • Acquisition frame rate
  • Firmware update in the field
  • I/O and trigger control
  • Temperature monitoring

Software and firmware

FAQs and application notes

  • Knowledge base:

Search the knowledge base for technical papers.

  • Application notes overview:

Click here to search from all available application notes!

  • Application notes recommended for Alvium CSI-2 cameras:

Tripod adapter 3D CAD file (STEP)

Alvium tripod adapter short (ZIP)

Camera 3D CAD files (STEP)

  1. You need a 3D CAD viewer application to view and measure the STEP files. Download a STEP viewer free of charge: https://www.freecadweb.org.
  2. Go to the Camera Selector, select your Alvium model, and configure the corresponding hardware option (such as an Open Housing C-Mount camera).
  3. In the tile showing your Alvium submodel, open the "STEP files" link. See the image below.
  4. Download the files from the link selection shown at the bottom of the tile.
  5. To assemble housed cameras from the STEP file components, follow the Instructions included in the link collection.
