exo gige

General

Model: exo545MGE
Product code(s): F002170
Product series: EXO GigE
Status: Available

Sensor

Sensor type: Area scan
Chroma: Mono
Spectrum: Visible
Spectral range: 400 nm to 1000 nm
Resolution: 4,096 × 3,000 (12.30 MP)
Sensor model: Sony IMX545LLA
Sensor architecture (material): cmos
Shutter type(s): global-shutter
Sensor size: 11.22 × 8.22 mm (13.91 mm, 14mm (Type 1/1.1))
Pixel size: 2.74 µm × 2.74 µm

Pixel formats

Sensor bit depth: 8-Bit,12-Bit,12-Bit
Monochrome pixel formats: mono8, mono12packed

Imaging performance

Dynamic range: 72 dB
SNR: 39 dB

Timing and gain

Max. frame rate: 10 fps
Max. frame rate burst: 23 fps
Exposure time: 60 µs (max)
Gain: 0.0 dB to 48.0 dB

I/Os and power

Non-isolated lines: 0 x LVDS input, 0 x LVDS output0 x TTL input, 0 x TTL output, 2 x 24V input, 4 x Open drain output
Specific non-isolated lines: 1 x RS232 input, 1 x RS232 output, 0 x RS422 input, 0 x RS422 output
Opto-isolated lines: 1 x Optical isolated input, 0 x Optical isolated Input,
Power supply: 10 to 25VDC
Power consumption: External: 4.5 W (typical at 12 VDC)

Operating conditions

Operating temperature (housing): -10 °C to 60 °C

Mechanical properties

Body dimensions (L x W x H in mm): 43 × 50 × 50
Filter/protection glass: K9 - AR coating - 400-850nm
IP class: IP40
Lens mount(s): C-Mount
Weight: 143 g

On-board memory and FPGA

Image buffer (RAM): 192 MByte
Non-volatile memory (Flash): 32 KByte

Interfaces

Digital interface: gige
Interface connector: (RJ-45)

FW features - image control

Exposure modes: Manual, Auto, External
Gain modes: Auto, Manual
Image control features: FW Features - Image Control

FW features - camera control

Trigger modes/sync: INTERNAL,SOFTWARE,EXTERNAL
Camera control features: PTP, BurstMode, User Sets, POE, PWM(4), Sequencer,
Datenblatt (pdf)

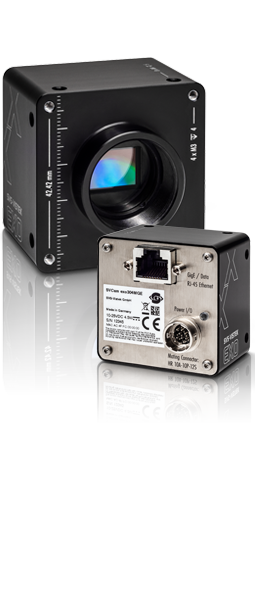

exo545MGE

Auflösung

4,096 × 3,000 (12.30 MP)

Bildrate

10 fps

Digitale Schnittstelle

GigE
