General
| Model: | fxo992MCX-T |
| Product code(s): | F002321 |
| Product series: | FXO SWIR |
| Status: | Available |
Sensor
| Sensor type: | Area scan |
| Chroma: | Mono |
| Spectrum: | SWIR, Visible SWIR |
| Spectral range: | 400 nm to 1700 nm |
| Resolution: | 2,560 × 2,048 (5.20 MP) |
| Sensor model: | Sony IMX992-AABA (TEC) |
| Sensor architecture (material): | cmos |
| Shutter type(s): | global-shutter |
| Sensor size: | 8.83 × 7.07 mm (11.31 mm, 11.4mm (Type 1/1.4)) |
| Pixel size: | 3.45 µm × 3.45 µm |
Pixel formats
| Monochrome pixel formats: | mono10, mono12, mono8 |
Timing and gain
| Max. frame rate: | 132.6 fps |
| Gain: | 0.0 dB to 42.0 dB |
I/Os and power
| Non-isolated lines: | 0 x LVDS input, 0 x LVDS output0 x TTL input, 0 x TTL output, 2 x 24V input, 4 x Open drain output |
| Specific non-isolated lines: | 1 x RS232 input, 1 x RS232 output, 0 x RS422 input, 0 x RS422 output |
| Opto-isolated lines: | 1 x Optical isolated input, 0 x Optical isolated Input, |
| Power supply: | 10 to 25VDC |
| Power consumption: | External: 12 W (typical at 12 VDC) |
Operating conditions
| Operating temperature (housing): | -10 °C to 60 °C |
Mechanical properties
| Body dimensions (L x W x H in mm): | 76 × 50 × 50 |
| IP class: | IP30 |
| Lens mount(s): | C-Mount |
| Weight: | 240 g |
On-board memory and FPGA
| Non-volatile memory (Flash): | 32000 KByte |
Interfaces
| Digital interface: | cxp-12 with 1 connection |
| Interface connector: | (micro-BNC) |

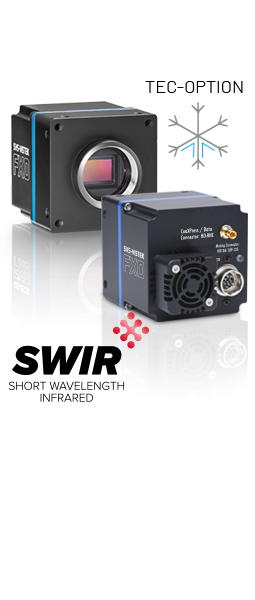

fxo992MCX-T
Auflösung
2,560 × 2,048 (5.20 MP)
Bildrate
132.6 fps
Digitale Schnittstelle
CXP-12 with 1 connection
