Prosilica GT 2300

Prosilica GT

  • Versatile temperature range for extreme environments
  • IEEE 1588 PTP
  • Power over Ethernet
  • P-Iris and DC-Iris lens control

4.1 megapixel industrial camera for extreme environments

Prosilica GT2300 is a 4.1 megapixel camera with a GigE Vision compliant Gigabit Ethernet port and Hirose I/O port. Prosilica GT2300 is offered in both monochrome and color models. This camera incorporates the high-quality ON Semi KAI-04050 TRUESENSE CCD sensor providing excellent monochrome and color image quality. At full resolution, this camera runs 29.3 frames per second. With a smaller region of interest, higher frame rates are possible. It is a rugged camera designed to operate in extreme environments and fluctuating lighting conditions. This camera offers Precise iris lens control allowing users to fix the aperture size to optimize depth of field, exposure, and gain without the need for additional control elements. By default monochrome models ship with no optical filter and color models ship with a Type IRC30 IR cut filter.


Benefits and features

  • Monochrome (GT2300) and color (GT2300C) models
  • GigE Vision interface with Power over Ethernet
  • Screw mount RJ45 Ethernet connector for secure operation in industrial environments
  • Supports cable lengths up to 100 meters (CAT-6 recommended)
  • Trigger over Ethernet Action Commands allow for a single cable solution to reduce system costs
  • Comprehensive I/O functionality for simplified system integration
  • Popular C-Mount lens mount
  • Easy camera mounting via standard M3 threads or optional tripod adapter
  • Easy software integration with Allied Vision's Vimba Suite and compatibility to the most popular third party image-processing libraries
  • Defect pixel column masking feature with the Load Defect Tables tool that allows you to manage a user defined defective pixel list to match your application and optimize the life cycle of the camera.
Bookmarked Bookmark it!
Contact sales
Availability: Discontinued. Last time buy: March 1, 2020 | Last time repair service: September 15, 2025
Recommended successor:

Prosilica GT 2750

Sensor: Sony ICX694
Frame rate: 19.8 fps


Resolution: 2750 (H) × 2200 (V)
Interface: GigE

Prosilica GT 2460

Sensor: Sony IMX264
Frame rate: 23.7 fps


Resolution: 2464 (H) × 2056 (V)
Interface: GigE

Prosilica GT 2050

Sensor: CMOSIS/ams CMV4000
Frame rate: 28.6 fps


Resolution: 2048 (H) × 2048 (V)
Interface: GigE

Manta G-1236

Sensor: Sony IMX304
Frame rate: 9.7 fps


Resolution: 4112 (H) × 3008 (V)
Interface: GigE

Manta G-917

Sensor: Sony ICX814
Frame rate: 10.1 fps


Resolution: 3384 (H) × 2710 (V)
Interface: GigE

Manta G-419

Sensor: CMOSIS/ams CMV4000
Frame rate: 28.6 fps


Resolution: 2048 (H) × 2048 (V)
Interface: GigE
More models
  • Specifications
  • Features
  • Applications
  • Quantum efficiency
  • Downloads
  • Accessories
IEEE 802.3 1000BASE-T, IEEE 802.3af (PoE)
2336 (H) × 1752 (V)
ON Semi KAI-04050
Sensor type
CCD Progressive
Sensor size
Type 1
Pixel size
5.5 µm × 5.5 µm
Shutter mode
Global shutter
Lens mounts (available)
C-Mount, CS-Mount, Birger EF-Mount, F-Mount, M42-Mount
Max. frame rate at full resolution
29.3 fps
14 Bit
Image buffer (RAM)
128 MByte
Imaging performance

Imaging performance data is based on the evaluation methods in the EMVA 1288 Release 3.1 standard for characterization of image sensors and cameras. Measurements are typical values for monochrome models measured at full resolution without optical filter.

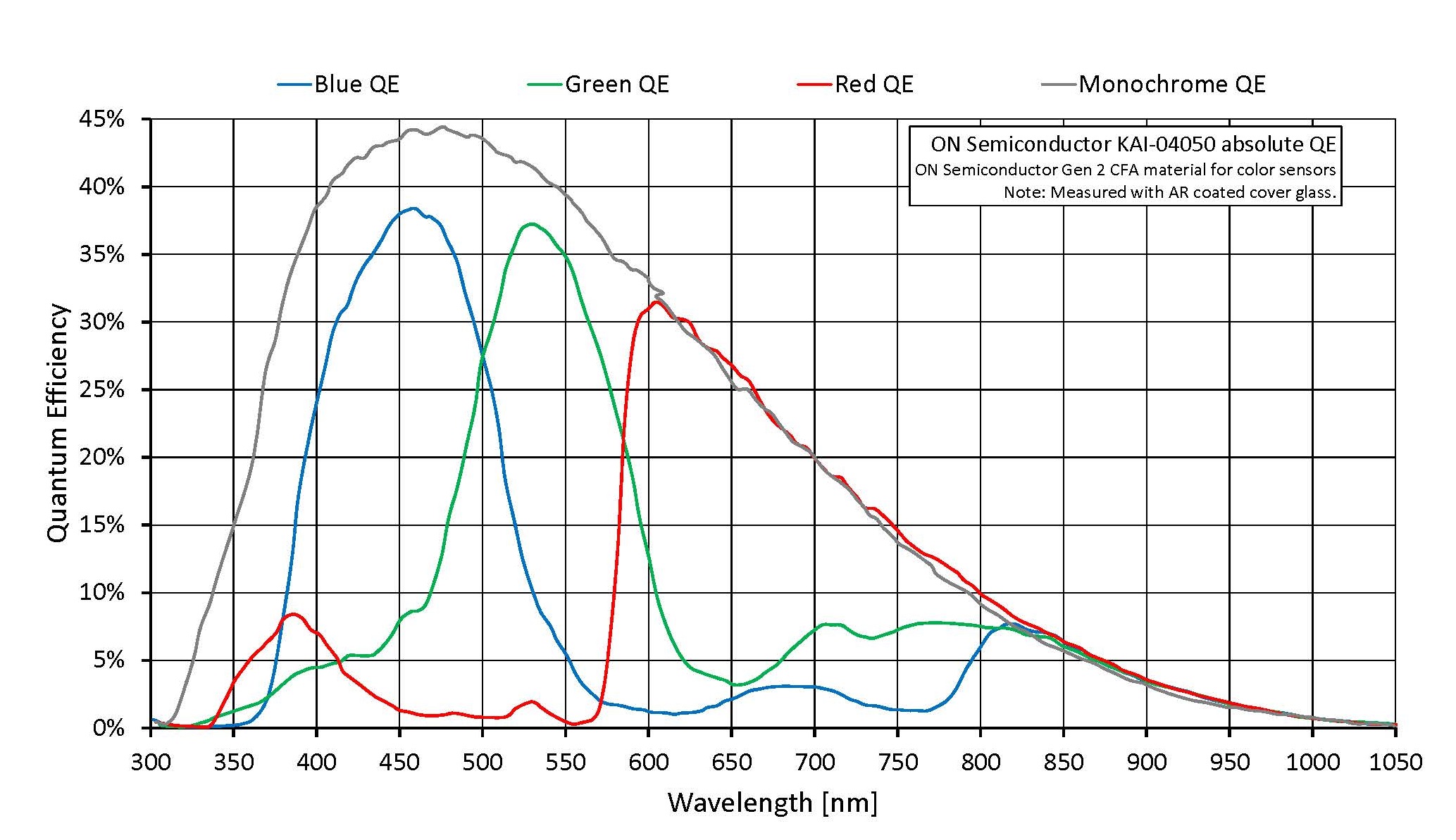

Quantum efficiency at 529 nm
42 %
Temporal dark noise
16.6 eˉ
Saturation capacity
19400 eˉ
Dynamic range
61.1 dB
Absolute sensitivity threshold
17.2 eˉ
Bit depth
12/14 Bit
Monochrome pixel formats
Mono8, Mono12, Mono12Packed, Mono14
Raw pixel formats
BayerGR8, BayerGR12, BayerRG12Packed
Operating conditions/dimensions
Operating temperature
-20 °C to +60 °C ambient (without condensation)
Power requirements (DC)
7 to 25 VDC AUX or 802.3at Type 1 PoE
Power consumption
4.9 W at 12 VDC; 6.0 W PoE
229 g
Body dimensions (L × W × H in mm)
92 × 53.3 × 33 (including connectors)
CE: 2014/30/EU (EMC), 2011/65/EU, including amendment 2015/863/EU (RoHS); FCC Class A; CAN ICES-003 Issue 4/5

Image optimization features:

  • Auto gain (manual gain control: 0 to 32 dB)
  • Auto exposure (manual exposure control: 10 µs to 26.8 s)
  • Auto white balance (GT2300C only)
  • Binning (horizontal and vertical)
  • Color correction, hue, saturation (GT2300C only)
  • Decimation X/Y
  • Defect pixel column masking (user defined with Load Defect Tables tool)
  • Gamma correction
  • Three look-up tables
  • Region of interest, separate region for auto features
  • Reverse X/Y

Camera control features:

  • P-Iris and DC-Iris lens control
  • Event channel
  • Image chunk data
  • IEEE 1588 Precision Time Protocol
  • RS232
  • Storable user sets
  • StreamBytesPerSecond (bandwidth control)
  • Stream hold
  • Sync out modes: Trigger ready, input, exposing, readout, imaging, strobe, GPO
  • Tap mode switchable in Vimba Viewer 2.0 or later (four-tap, one-tap)
  • Temperature monitoring (main board and sensor board)
  • Trigger over Ethernet Action Commands



Prosilica GT2300 is ideal for a wide range of applications including:

  • Outdoor imaging
  • Traffic imaging and Intelligent Traffic Systems
  • Public security and surveillance
  • Industrial inspection
  • Machine vision
  • Military and space applications
