Prosilica GE 2040

Prosilica GE
2040

  • 15 fps @ full resolution
  • ON Semi KAI-04022 sensor
  • Galvanically isolated I/O
  • Various lens mount options

ON Semi KAI-04022 4.2 Megapixel CCD camera, 15 frames per second

Prosilica GE2040 is a very high-resolution CCD camera with Gigabit Ethernet output. This camera features the high-quality ON Semiconductor KAI-04022 CCD image sensor that provides superior image quality, excellent sensitivity, and low noise. At full resolution, this camera has a frame rate of 15 frames per second. With a smaller region of interest higher frame rates are possible. By default monochrome models ship with no optical filter and color models ship with an IRC30 IR cut filter.

Bookmarked Bookmark it!
Contact sales
Availability: Not for new designs
  • Specifications
  • Features
  • Applications

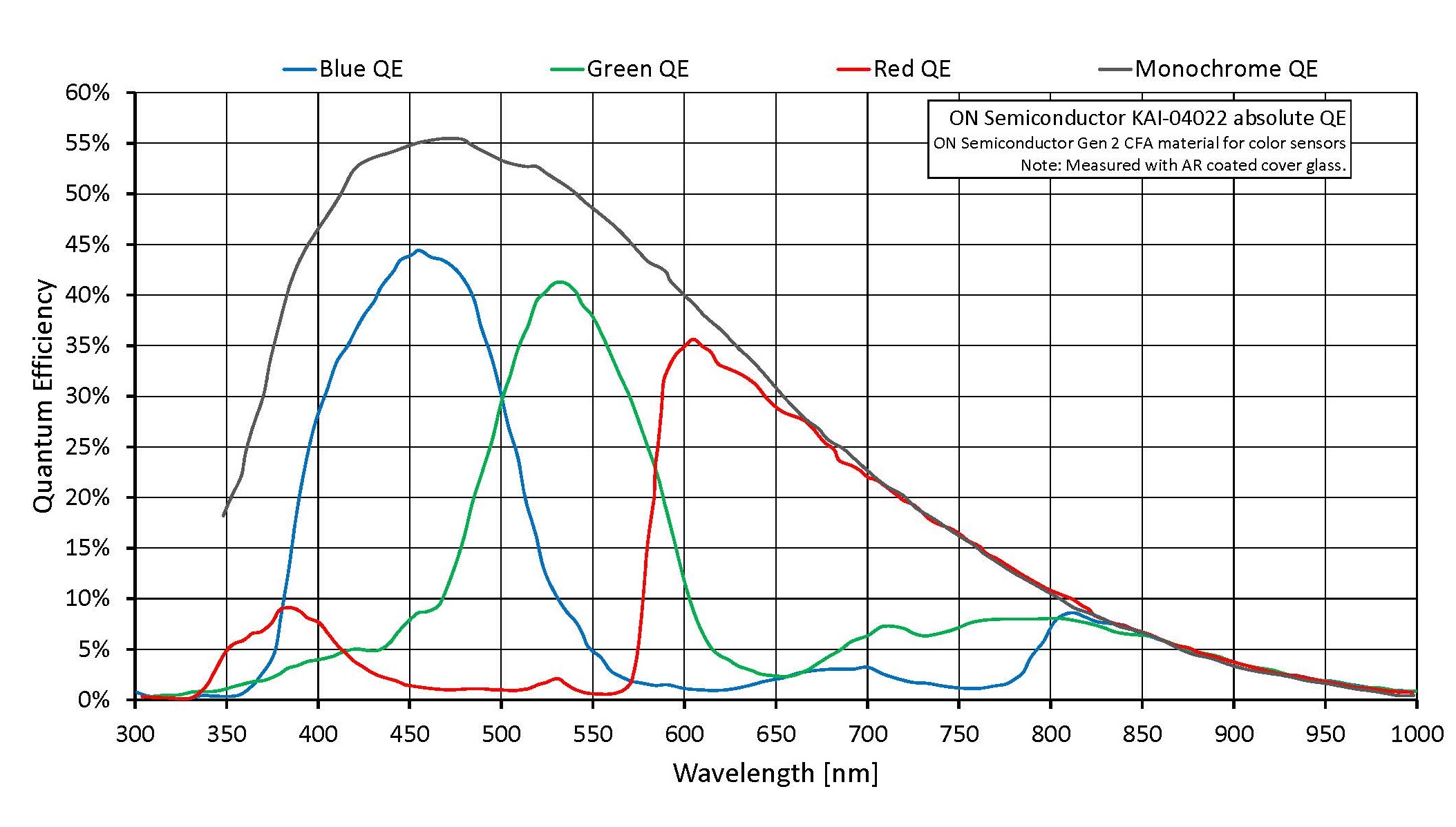

  • Quantum efficiency
  • Downloads
  • Accessories
Interface
IEEE 802.3 1000baseT
Resolution
2040 (H) × 2048 (V)
Sensor
ON Semi KAI-04022
Sensor type
CCD Progressive
Sensor size
Type 1.2
Pixel size
7.4 µm × 7.4 µm
Lens mount (default)
C-Mount
Max. frame rate at full resolution
15 fps
ADC
12 Bit
Image buffer (RAM)
32 MByte
Output
Bit depth
8/12 Bit
Monochrome pixel formats
Mono8, Mono12, Mono12Packed
YUV color pixel formats
YUV411Packed
RGB color pixel formats
RGB8Packed, BGR8Packed, RGBA8Packed, BGRA8Packed, RGB12Packed
Raw pixel formats
BayerGR8, BayerGR12, BayerGR12Packed
General purpose inputs/outputs (GPIOs)
TTL I/Os
1 input, 3 outputs (with galvanic isolation)
RS232
1
Operating conditions/dimensions
Operating temperature
0 °C to +50 °C ambient (without condensation)
Power requirements (DC)
5 to 24 VDC
Power consumption
5.5 W at 12 VDC
Mass
169 g
Body dimensions (L × W × H in mm)
80 × 51 × 39 (including connectors)
Regulations
CE: 2014/30/EU (EMC), 2011/65/EU, including amendment 2015/863/EU (RoHS); FCC Class A

Prosilica GE2040 features include:

  • Region of interest (ROI), DSP subregion (selectable ROI for auto features)
  • Binning (Sum)
  • Auto gain (manual gain control: 0 to 34 dB)
  • Auto exposure (manual exposure controls: 75 µs to 53.7 s)
  • Auto white balance
  • StreamBytesPerSecond (bandwidth control)
  • Stream hold
  • Sync out modes: Trigger ready, input, exposing, readout, imaging, strobe, GPO
  • Global shutter (digital shutter)
  • Recorder and Multiframe acquisition modes
  • Event channel
  • Chunk data
  • Storable user sets

Prosilica GE2040 is ideal for a wide range of applications including:

  • High-resolution industrial inspection
  • General machine vision
  • 3D metrology
  • LCD panel inspection
  • Military surveillance
  • Public security
  • Traffic imaging (Intelligent Traffic Systems)
  • Embedded systems
  • OEM applications
