Pike F-210

Pike

F-210

  • Versatile IEEE 1394b camera
  • Advanced feature set
  • Many variants
  • High frame rates

HDTV camera with video frame rate - 2 Megapixels

The Pike F-210B/F-210C is equipped with an ON Semiconductor KAI-2093 CCD sensor, and it features smart real-time functions.  At full resolution, it runs up to 31 frames per second. Higher frame rates can be reached by using a smaller area of interest (AOI), binning (b/w), or sub-sampling.



Options:

  • IEEE 1394b connectors: 2 x copper (daisy chain) or 1 x GOF, 1 x copper, Hirose power: out
  • Various IR cut/pass filters, various lens mounts
  • Angled head, white medical housing
  • Specifications
  • Features
  • Applications
  • Quantum efficiency
  • Downloads
  • Accessories
Interface
IEEE 1394b - 800 Mb/s, 2 ports, daisy chain, fiber optic (GOF) optional
Resolution
1920 (H) × 1080 (V)
Sensor
OnSemi KAI-2093
Sensor type
CCD Progressive
Sensor size
Type 1
Cell size
7.4 µm x 7.4 µm
Lens mount
C-Mount
Frame rate
31 fps
ADC
14 Bit
Image buffer (RAM)
64 MByte
Output
Bit depth
8-14 Bit
Mono modes
Mono8, Mono12, Mono16
Color modes RGB
RGB8
Raw modes
Raw8, Raw12, Raw16
General purpose inputs/outputs (GPIOs)
Opto-isolated I/Os
2 inputs, 4 outputs
RS-232
1
Operating conditions/dimensions
Operating temperature
+5 °C to +50 °C
Power requirements (DC)
8 V to 36 V
Power consumption (@12 V)
4 W
Mass
250 g
Body dimensions (L × W × H in mm)
96.8 × 44 × 44 (including connectors)
Regulations
CE, RoHS, REACH, WEEE, FCC
  • High SNR mode (up to 24 dB better signal-to-noise ratio)
  • Low-noise binning mode
  • Smear reduction
  • Shading correction
  • Area of interest (AOI), separate AOI for auto features
  • Binning
  • Decimation
  • Auto gain (manual gain control: 0 to 22 dB)
  • Auto exposure (43 µs to 67 s)
  • Auto white balance
  • Look-up table (LUT)
  • Hue, saturation, color correction
  • Reverse X
  • Deferred image transport
  • Trigger programmable, level, single, bulk, programmable delay
  • Sequence mode (changes the camera settings on the fly)
  • SIS (secure image signature, time stamp for trigger, frame count)
  • Storable user sets

The Pike F-210B/F-210C suits for applications which require the highest quality in HDTV resolution (1920 x 1080) at video frame rates. Besides the excellent image quality, its flexibility makes it suitable for many applications. The fiber version supports cable lengths of 400 meters and even more without any additional repeaters.

Pike cameras are especially suited for:

  • Entertainment, movie pre-production, video recording
  • OEM applications (modular concept)
  • Motion studies
  • Science and research
  • Healthcare and sports
  • Event documentation
  • ITS (Intelligent traffic solutions)
  • Long cable lengths, 400 meters and more (fiber version)
Lenses

Please note: This selector filters lenses on technical criteria only. To find the right lens for your application requirements, please ask our Sales and Support teams for advice.

Lens
Manufacturer
Mount
Focal Length
F-Stop
Sensor size
Bookmark
{{lens.manufacturer.title}} {{lens.id}} {{lens.id}}
{{lens.manufacturer.title}}
{{lens.mount.title}}
{{lens.focalLength}} mm
{{lens.fStop.title}}
{{lens.sensorSize.title}}

Interface cables
Interface Cable
Description
Camera Interface
Bookmark
{{interfaceCable.manufacturer.title}} {{interfaceCable.partNumber}} {{interfaceCable.partNumber}}
{{interfaceCable.description}}
{{joinObjects(interfaceCable.cameraInterfacefilter)}}

Interface cards
Interface Card
Description
Camera Interface
Bookmark
{{interfaceCard.manufacturer.title}} {{interfaceCard.partNumber}} {{interfaceCard.partNumber}}
{{interfaceCard.description}}
{{joinObjects(interfaceCard.cameraInterfacefilter)}}

Trigger, I/O & power cables
Cable
Description
Camera Series
Bookmark
{{trigger.manufacturer.title}} {{trigger.partNumber}} {{trigger.partNumber}}
{{trigger.description}}
{{series.title}}{{$last ? '' : ', '}}

Hubs & Repeaters
Hubs & Repeaters
Description
Camera Interface
Bookmark
{{networking.manufacturer.title}} {{networking.partNumber}} {{networking.partNumber}}
{{networking.description}}
{{networking.cameraInterfacefilter.title}}

Tripod adapters
Tripod Adapter
Description
Camera Series
Bookmark
{{tripodAdapter.manufacturer.title}} {{tripodAdapter.partNumber}} {{tripodAdapter.partNumber}}
{{tripodAdapter.description}}
{{series.title}}{{$last ? '' : ', '}}

Power supplies
Power Supply
Description
Camera Series
Bookmark
{{powerSupply.manufacturer.title}} {{powerSupply.partNumber}} {{powerSupply.partNumber}}
{{powerSupply.description}}
{{series.title}}{{$last ? '' : ', '}}

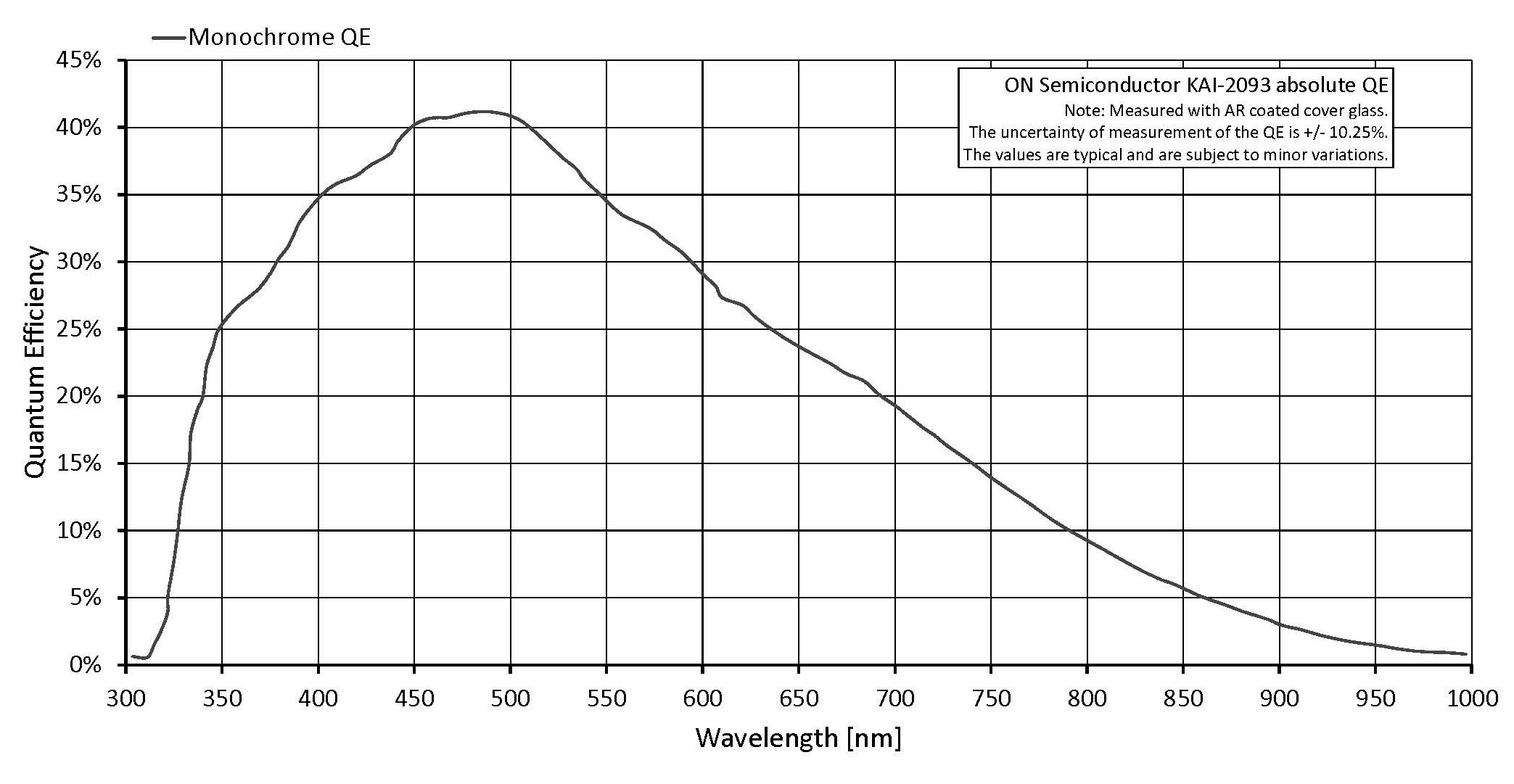

OnSemi KAI-2093 CCD Progressive sensor graph
