Manta G-609

Manta

G-609

  • Versatile 6 Megapixel camera
  • 15.2 fps @ full resolution
  • Power over Ethernet option
  • Video-iris lens control

GigE camera with Sony ICX694 CCD sensor, 15.2 frames per second

Manta G-609B/G-609C is a machine vision camera that incorporates the high quality Type 1 (15.989 mm diagonal) Sony ICX694 CCD sensor with EXview HAD II technology. This sensor has excellent sensitivity and near-infrared response. At full resolution, this camera runs 15.2 frames per second. With a smaller region of interest, higher frame rates are possible. The Manta is one of Allied Vision's versatile GigE Vision cameras with a wide range of features. Particular highlights are the three look-up tables, sophisticated color correction capabilities, a robust metal housing, and many modular options. By default monochrome models ship with protection glass B 270 (ASG) and color models ship with an IRC Hoya C-5000 IR cut filter.



Options:

  • Power over Ethernet (PoE)
  • Various optical filter and lens mount options
  • White medical housing

See the Modular Concept for lens mount, optical filters, case design, and other modular options.

  • Specifications
  • Features
  • Applications

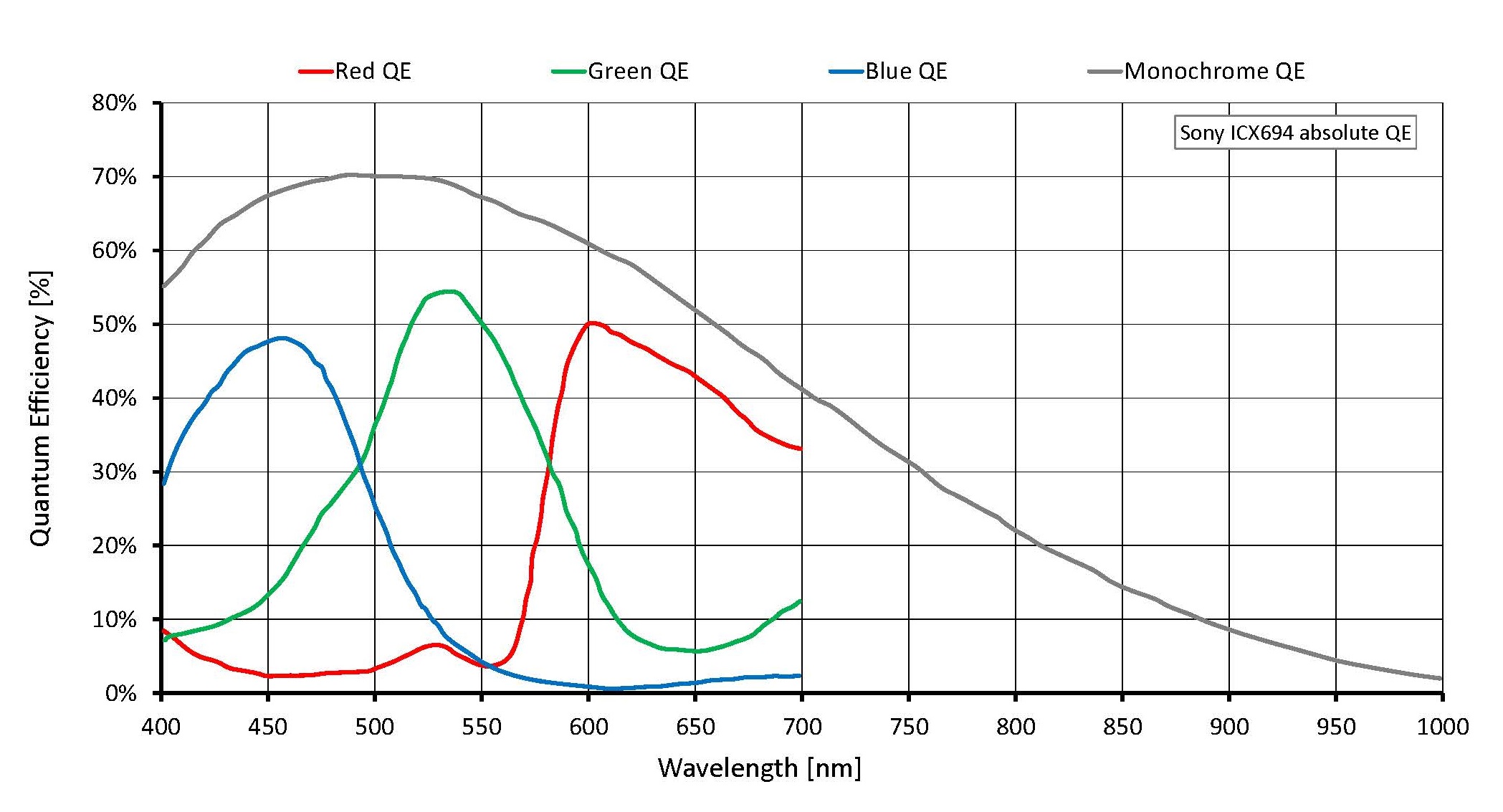

  • Quantum efficiency
  • Downloads
  • Accessories
Interface
IEEE 802.3 1000BASE-T, IEEE 802.3af (PoE) optional
Resolution
2752 (H) × 2206 (V)
Sensor
Sony ICX694
Sensor type
CCD Progressive
Sensor Size
Type 1
Cell size
4.54 µm x 4.54 µm
Lens mount
C-Mount
Frame rate
15.2 fps
ADC
14 Bit
Image buffer (RAM)
128 MByte
Output
Bit depth
8/14-8/12 Bit
Mono modes
Mono8, Mono12, Mono12Packed
Color modes YUV
YUV411Packed, YUV422Packed, YUV444Packed
Color modes RGB
RGB8Packed, BGR8Packed
Raw modes
BayerRG8, BayerRG12, BayerRG12Packed
General purpose inputs/outputs (GPIOs)
Opto-isolated I/Os
2 inputs, 2 outputs
RS-232
1
Operating conditions/dimensions
Operating temperature
+5 °C to +45 °C ambient (without condensation)
Power requirements (DC)
8 to 30 VDC; PoE
Power consumption (@12 V)
3.9 W @ 12 VDC; 4.6 W PoE
Mass
190 g; 200 g (PoE)
Body dimensions (L × W × H in mm)
86.4 × 44 × 29 (including connectors)
Regulations
CE, RoHS, REACH, WEEE, FCC, ICES

Image optimization features:

  • Auto gain (manual gain control: 0 to 33 dB, 1dB increments)
  • Auto exposure (41 µs to 38 s; 1 µs increments)
  • Auto white balance (color models only)
  • Binning
  • Black level (offset)
  • Color correction, hue, saturation (color models only)
  • Decimation
  • Gamma correction
  • Look-up tables (LUTs) (3)
  • Region of interest (ROI), separate ROI for auto features

Camera control features:

  • Auto-iris (video type)
  • Event channel
  • Image chunk data
  • IEEE 1588 Precision Time Protocol (PTP)
  • Storable user sets
  • StreamBytesPerSecond (easy bandwidth control)
  • Stream hold
  • Sync out modes: Trigger ready, input, exposing, readout, imaging, strobe, GPO
  • Tap mode switchable in Vimba Viewer 2.0 or later (two-tap, one-tap)
  • Temperature monitoring (main board)
  • Trigger over Ethernet (ToE) Action Commands

Manta G-609B/G-609C is ideal for a wide range of applications including:

  • High-resolution surveillance
  • Metrology and inspection systems
  • Scientific measurement
  • Microscopy
  • Forensic solutions
  • Intelligent traffic solutions (ITS)
  • Applications requiring a highly sensitive camera (low light conditions)
  • Applications requiring good sensitivity in the NIR spectrum
