Mako G G-223

Mako G
G-223

  • Ultra-compact design
  • IEEE 1588 PTP
  • Power over Ethernet
  • Trigger over Ethernet

GigE Vision camera, CMOSIS/ams CMV2000 CMOS sensor, 49.5 fps

Mako G-223 is a 2.2 megapixel GigE machine vision camera that incorporates the high quality Type 2/3 (12.7 mm diagonal) CMOSIS/ams CMV2000 CMOS sensor. At full resolution, this camera runs 49.5 frames per second. With a smaller region of interest, higher frame rates are possible.

Mako G cameras have the same ultra-compact form factor and the same mounting positions as many analog cameras. All models include Power over Ethernet, three opto-isolated outputs, and a 64 MB image buffer. The image quality profits from the precisely aligned sensor. By default monochrome models ship with no optical filter and color models ship with a Type Hoya C-5000 IR cut filter.



Benefits and features:

  • Monochrome (G-223B) and color (G-223C) models
  • GigE Vision interface with Power over Ethernet
  • Screw mount RJ45 Ethernet connector for secure operation in industrial environments
  • Supports cable lengths up to 100 meters (CAT-6 recommended)
  • Comprehensive I/O functionality for simplified system integration
  • Trigger over Ethernet Action Commands allow for a single cable solution to reduce system cost
  • IEEE 1588 Precision Time Protocol allows for easy synchronization of multiple cameras and devices on network
  • Popular C-Mount lens mount
  • Easy camera mounting via standard M3 threads on top and bottom of housing or optional tripod adapter
  • Easy software integration with Allied Vision's Vimba Suite and compatibility to the most popular third party image-processing libraries.
  • Defect pixel masking feature with the Defect Mask Loader tool that allows you to manage a user defined defective pixel list to match your application and optimize the life cycle of the camera.
  • Select between B 270 ASG protection glass and filter types: Jenofilt 217 IR cut filter, Hoya C-5000 IR cut filter, RG715 IR pass filter, or RG830 IR pass filter

See the Modular Concept for lens mount and optical filter options.
See the Customization and OEM Solutions webpage for additional options.

Bookmarked Bookmark it!
Contact sales
Availability: Available
ⓘ
  • Specifications
  • Features
  • Applications

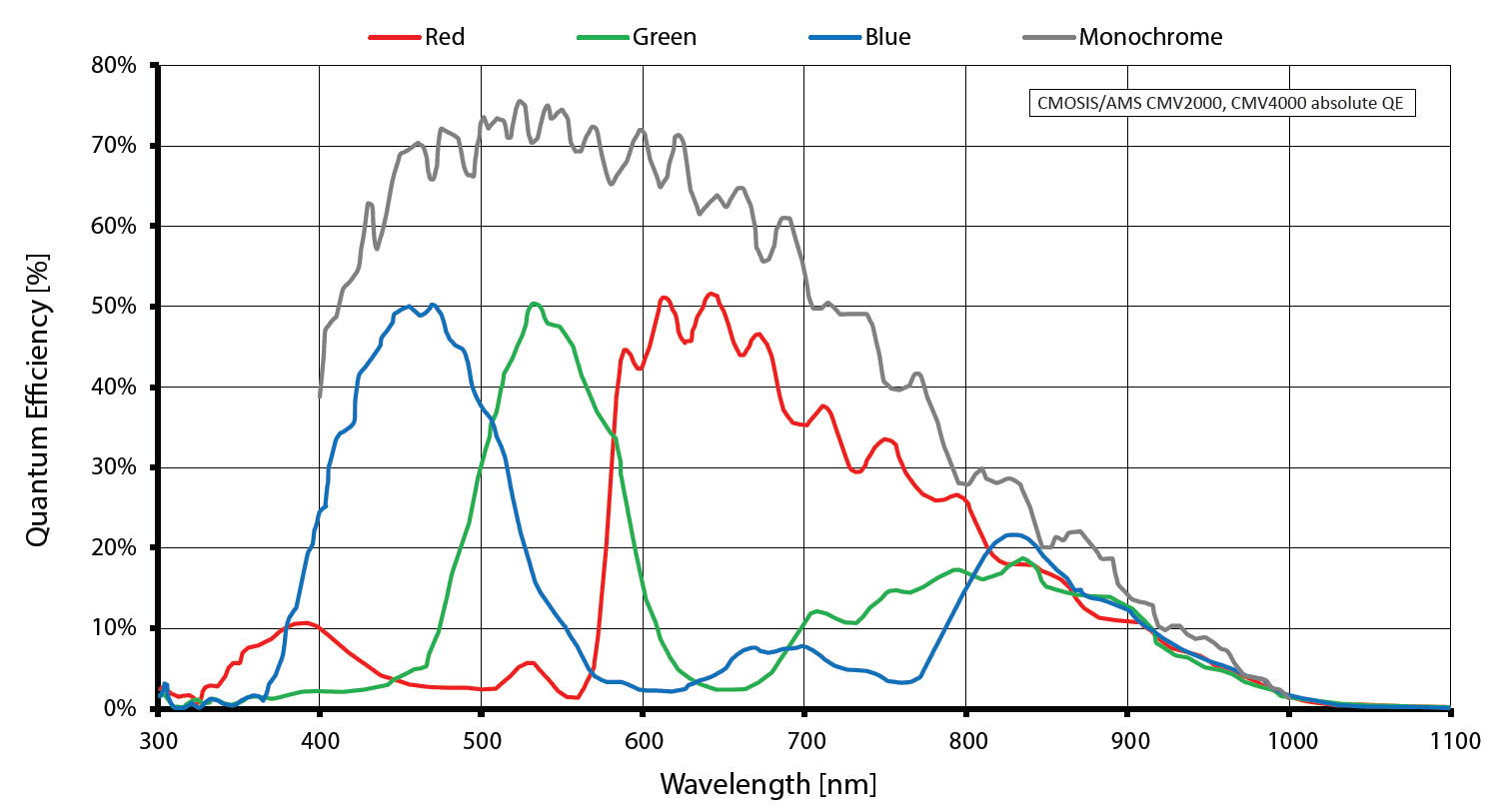

  • Quantum efficiency
  • Downloads
  • Accessories
Interface
IEEE 802.3 1000BASE-T, IEEE 802.3af (PoE)
Resolution
2048 (H) × 1088 (V)
Sensor
CMOSIS/ams CMV2000
Sensor type
CMOS
Sensor size
Type 2/3
Pixel size
5.5 µm × 5.5 µm
Shutter mode
Global shutter
Lens mounts (available)
C-Mount, CS-Mount, S-Mount
Max. frame rate at full resolution
49.5 fps
ADC
12 Bit
Image buffer (RAM)
64 MByte
Imaging performance

Imaging performance data is based on the evaluation methods in the EMVA 1288 Release 3.1 standard for characterization of image sensors and cameras. Measurements are typical values for monochrome models measured at full resolution without optical filter. Contact Sales or AE for more information.

Quantum efficiency at 529 nm
77 %
Temporal dark noise
13.2 eˉ
Saturation capacity
9800 eˉ
Dynamic range
57.1 dB
Absolute sensitivity threshold
13.7 eˉ
Output
Bit depth
8/12 Bit
Monochrome pixel formats
Mono8, Mono12, Mono12Packed
Raw pixel formats
BayerGB8, BayerGB12, BayerGB12Packed
Operating conditions/dimensions
Operating temperature
+5 °C to +45 °C housing temperature
Power requirements (DC)
12 to 24 VDC AUX or 802.3at Type 1 PoE
Power consumption
2.4 W at 12 VDC; 2.8 W PoE
Mass
80 g (with C-Mount)
Body dimensions (L × W × H in mm)
60.5 × 29.2 × 29.2 (including connectors)
Regulations
CE: 2014/30/EU (EMC), 2011/65/EU, including amendment 2015/863/EU (RoHS); FCC Class B; CAN ICES-003

Image optimization features:

  • Auto gain (manual gain control: 0 to 26 dB; 1 dB increments)
  • Auto exposure (manual exposure control: 30 µs to 153 s; 1 µs increments)
  • Auto white balance (G-223C only)
  • Color correction, hue, saturation (G-223C only)
  • Defect pixel masking (user defined with Defect Mask Loader tool)
  • Gamma correction
  • One look-up table
  • Piecewise Linear HDR mode
  • Region of interest, separate region for auto features

Camera control features:

  • Event channel
  • Image chunk data
  • IEEE 1588 Precision Time Protocol
  • Storable user sets
  • StreamBytesPerSecond (bandwidth control)
  • Stream hold
  • Sync out modes: Trigger ready, input, exposing, readout, imaging, strobe, GPO
  • Temperature monitoring (main board only)
  • Trigger over Ethernet Action Commands

Mako G-223 is ideal for a wide range of applications including:

  • Robotics
  • Quality control
  • Inspection, surveillance
  • Industrial imaging
  • Machine vision
  • Logistics

Lenses

Please note: This selector filters lenses on technical criteria only. To find the right lens for your application requirements, please ask our Sales and Support teams for advice.

Lens
Manufacturer
Mount
Focal Length
F-Stop
Sensor size
Bookmark
{{lens.manufacturer.title}} {{lens.id}} {{lens.id}}
{{lens.manufacturer.title}}
{{lens.mount.title}}
{{lens.focalLength}} mm
{{lens.fStop.title}}
{{lens.sensorSize.title}}


Interface connections

Interface Connection
Description
Camera Interface
Bookmark
{{interfaceCable.manufacturer.title}} {{interfaceCable.partNumber}} {{interfaceCable.partNumber}}
{{interfaceCable.description}}
{{joinObjects(interfaceCable.cameraInterfacefilter)}}


Interface cards

Interface Card
Description
Camera Interface
Bookmark
{{interfaceCard.manufacturer.title}} {{interfaceCard.partNumber}} {{interfaceCard.partNumber}}
{{interfaceCard.description}}
{{joinObjects(interfaceCard.cameraInterfacefilter)}}


Trigger, I/O & power cables

Cable
Description
Camera Family
Bookmark
{{trigger.manufacturer.title}} {{trigger.partNumber}} {{trigger.partNumber}}
{{trigger.description}}
{{series.title}}{{$last ? '' : ', '}}


Hub & Repeater

Hub & Repeater
Description
Camera Interface
Bookmark
{{networking.manufacturer.title}} {{networking.partNumber}} {{networking.partNumber}}
{{networking.description}}
{{joinObjects(networking.cameraInterfacefilter)}}


Tripod adapters

Tripod Adapter
Description
Camera Family
Bookmark
{{tripodAdapter.manufacturer.title}} {{tripodAdapter.partNumber}} {{tripodAdapter.partNumber}}
{{tripodAdapter.description}}
{{series.title}}{{$last ? '' : ', '}}


Power supplies

Power Supply
Description
Camera Family
Bookmark
{{powerSupply.manufacturer.title}} {{powerSupply.partNumber}} {{powerSupply.partNumber}}
{{powerSupply.description}}
{{series.title}}{{$last ? '' : ', '}}


Data sheets and brochure

  • Allied Vision Camera Line-Up V5.3.2From ultra-compact affordable cameras to high-performance models packed with special features, Allied Vision has a camera solution for every possible requirement.

Camera installation, technical manual, and features

Mako G QuickStart Guide

  • Mako G QuickStart Guide V1.0.0The QuickStart Guide is available in 12 languages including Chinese, Danish, Dutch, English, Finnish, French, German, Italian, Japanese, Norwegian, Spanish, and Swedish.
  • Mako G Technical Manual V4.4.3Find camera-specific information in the technical manual. See the Installation and hardware chapter for information on connecting your camera to a host computer.

3D CAD files (STEP)

Please right-click the link of a 3D camera model and select save as to download the file. After downloading,  unzip the STEP file. You need a 3D CAD viewer application to view and measure the STEP files. Download a STEP viewer free of charge: https://www.freecadweb.org/

Software and firmware

Vimba is our current future-proof SDK.



Other SDKs and tools are available on our Software downloads webpage.



GigE camera firmware is available on our Firmware webpage.
