Mako G G-131

Mako G

G-131

  • Ultra-compact design
  • e2v Sapphire CMOS sensor
  • Switchable shutter modes
  • 62 fps @ full resolution

GigE Vision camera with e2v Sapphire sensor; 62 frames per second

Mako G-131B/G-131C is a GigE machine camera that incorporates the high quality Type 1/11.8 (8.7 mm diagonal) e2v Sapphire EV76C560 CMOS sensor. At full resolution, this camera runs 62 frames per second. With a smaller region of interest, higher frame rates are possible. Mako G cameras have the same ultra-compact form factor and the same mounting positions as many analog cameras. All models include Power over Ethernet (PoE), three opto-isolated outputs, and a 64 MByte image buffer. The image quality profits from the precisely aligned sensor. By default monochrome models ship with no optical filter and color models ship with IRC Hoya C-5000 IR cut filter.



Options:

  • Various optical filter and lens mount options
  • White medical housing

See the Modular Concept for lens mount, optical filter, and case design options.

  • Specifications
  • Features
  • Applications

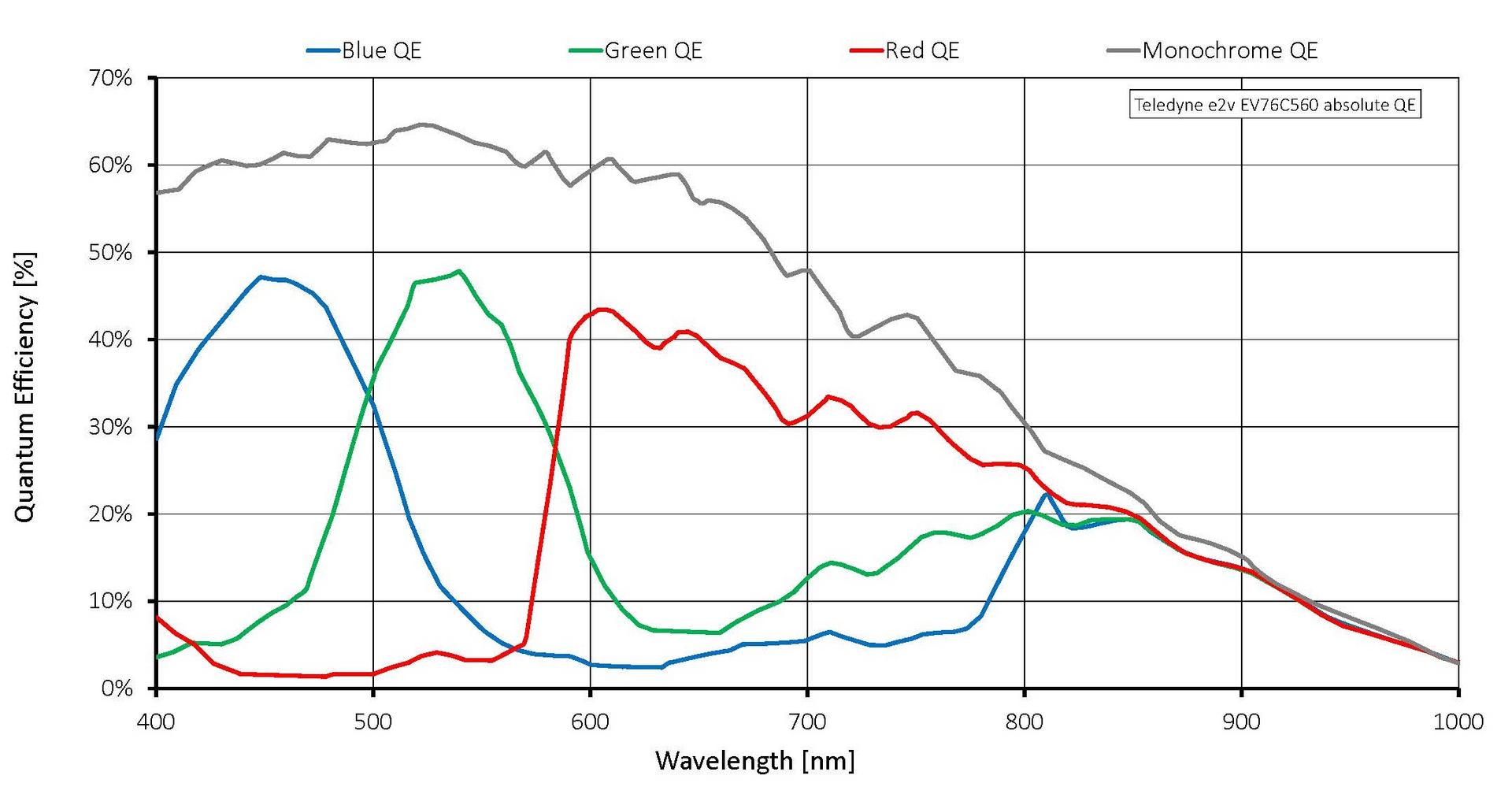

  • Quantum efficiency
  • Downloads
  • Accessories
Interface
IEEE 802.3 1000BASE-T, IEEE 802.3af (PoE)
Resolution
1280 (H) × 1024 (V)
Sensor
e2v EV76C560
Sensor type
CMOS
Sensor size
Type 1/1.8
Cell size
5.3 µm x 5.3 µm
Lens mount
C-Mount
Frame rate
62 fps
ADC
10 Bit
Image buffer (RAM)
64 MByte
Output
Bit depth
8/10 Bit
Mono modes
Mono8, Mono10
Color modes YUV
YUV411Packed, YUV422Packed, YUV444Packed
Color modes RGB
RGB8Packed, BGR8Packed
Raw modes
BayerBG8, BayerBG10
General purpose inputs/outputs (GPIOs)
Opto-isolated I/Os
1 input, 3 outputs
Operating conditions/dimensions
Operating temperature
+5 °C to +45 °C housing temperature
Power requirements (DC)
12 to 24 VDC; PoE
Power consumption (@12 V)
2.0 W @ 12 VDC; 2.2 W PoE
Mass
80 g
Body dimensions (L × W × H in mm)
60.5 × 29 × 29 (including connectors)
Regulations
CE, RoHS, REACH, WEEE, FCC, ICES

Image optimization features:

  • Auto gain (manual gain control: 0 to 24 dB, 1 dB increments)
  • Auto exposure (exposure time control varies by pixel format)
  • Auto white balance (color models only)
  • Binning (1x1 and 2x2 binning)
  • Color correction, hue, saturation (color models only)
  • Decimation
  • Gamma correction
  • Look-up table (LUT) (1)
  • Pixel defect masking
  • Region of interest (ROI), separate ROI for auto features
  • Reverse X/Y

Camera control features:

  • Event channel
  • Image chunk data
  • Storable user sets
  • StreamBytesPerSecond (easy bandwidth control)
  • Stream hold
  • Sync out modes: Trigger ready, input, exposing, readout, imaging, strobe, GPO
  • Switchable Rolling / Global / GlobalReset shutter modes
  • Temperature monitoring (main board only)

Mako G-131B/G-131C is ideal for a wide range of applications including:

  • Robotics
  • Quality control
  • Inspection, surveillance
  • Industrial imaging
  • Machine vision
  • Logistics
