Mako G G-030

Mako G
G-030

  • Trigger over Ethernet
  • Piecewise Linear HDR feature
  • IEEE 1588 PTP
  • Ultra-compact design

Compact machine vision camera with high frame rate

Mako G-030 is a 0.3 megapixel GigE machine vision camera that incorporates the high quality Type 1/3 (5.9 mm diagonal) CMOSIS/ams CMV300 CMOS sensor. At full resolution, this camera runs 309 frames per second. With a smaller region of interest, higher frame rates are possible.

Mako G cameras have the same ultra-compact form factor and the same mounting positions as many analog cameras. All models include Power over Ethernet (PoE), three opto-isolated outputs, and a 64 MB image buffer. The image quality profits from the precisely aligned sensor. By default monochrome models ship with no optical filter and color models ship with IRC Hoya C-5000 IR cut filter.



Benefits and features:

  • Monochrome (G-030B) and color (G-030C) models
  • GigE Vision interface with Power over Ethernet
  • Screw mount RJ45 Ethernet connector for secure operation in industrial environments
  • Supports cable lengths up to 100 meters (CAT-5e or CAT-6)
  • Comprehensive I/O functionality for simplified system integration
  • Trigger over Ethernet (ToE) Action Commands allow for a single cable solution to reduce system cost
  • IEEE 1588 Precision Time Protocol (PTP) allows for easy synchronization of multiple cameras and devices on network
  • Popular C-Mount lens mount
  • Easy camera mounting via standard M3 threads on top and bottom of housing or optional tripod adapter
  • Easy software integration with Allied Vision's Vimba SDK and compatibility to the most popular third party image-processing libraries.
  • Defect pixel masking feature with the Defect Mask Loader tool that allows you to manage a user defined defective pixel list to match your application and optimize the life cycle of the camera.
  • Available with protection glass, IR cut filter, or IR pass filter

See the Modular Concept for lens mount and optical filter options.
See the Customization and OEM Solutions webpage for additional options.

Bookmarked Bookmark it!
Contact sales
Availability: Available
ⓘ
  • Specifications
  • Features
  • Applications

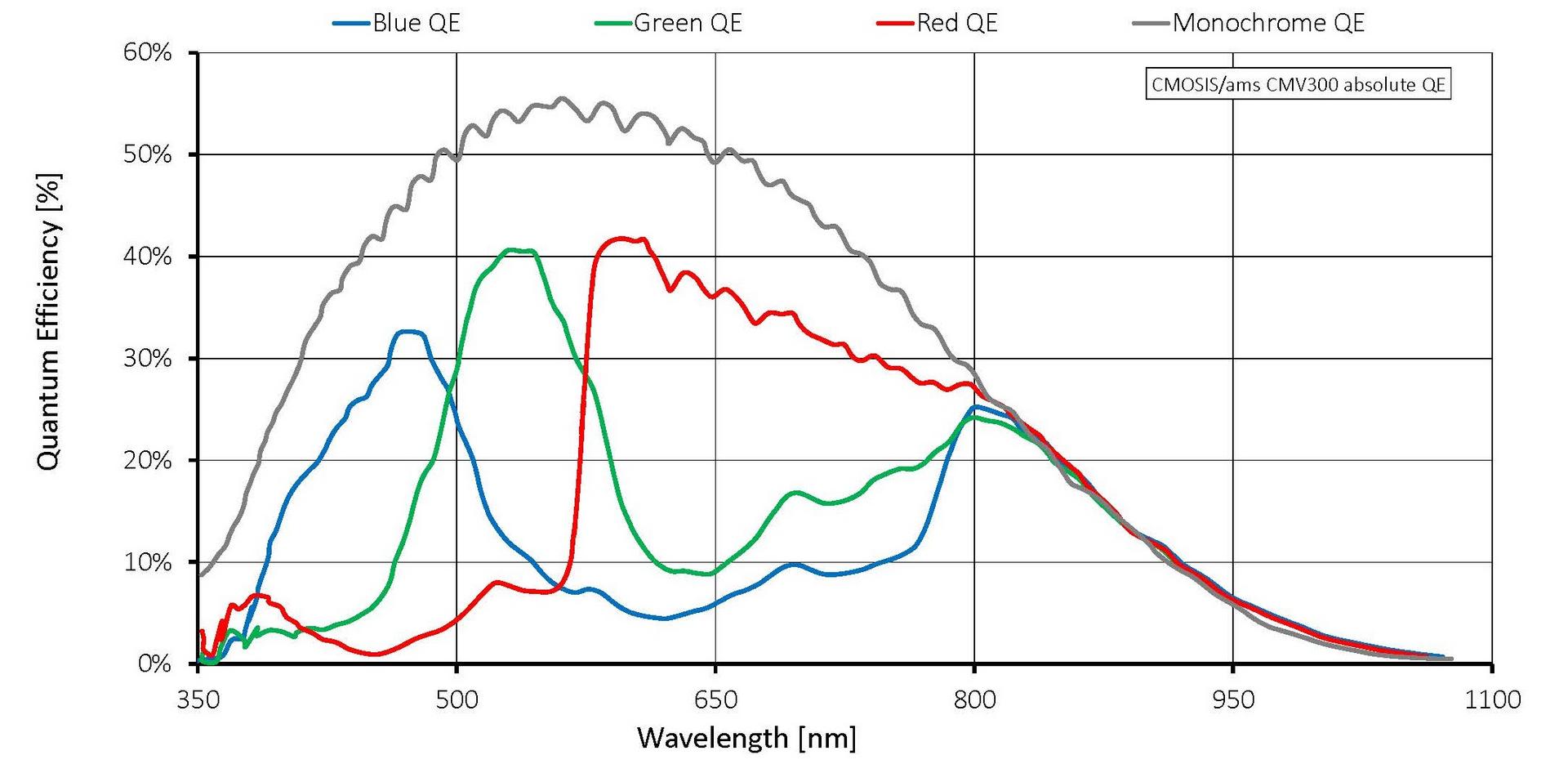

  • Quantum efficiency
  • Downloads
  • Accessories
Interface
IEEE 802.3 1000BASE-T, IEEE 802.3af (PoE)
Resolution
644 (H) × 484 (V)
Sensor
CMOSIS/ams CMV300
Sensor type
CMOS
Shutter mode
Global shutter
Sensor size
Type 1/3
Pixel size
7.4 µm × 7.4 µm
Lens mounts (available)
C-Mount, CS-Mount, M12-Mount
Max. frame rate at full resolution
309 fps
ADC
12 Bit
Image buffer (RAM)
64 MByte
Imaging performance

Imaging performance data is based on the evaluation methods in the EMVA 1288 Release 3.1 standard for characterization of image sensors and cameras. Measurements are typical values for monochrome models measured at full resolution without optical filter. Contact Sales or AE for more information.

Quantum efficiency at 529 nm
55 %
Temporal dark noise
12.9 eˉ
Saturation capacity
9300 eˉ
Dynamic range
56.7 dB
Absolute sensitivity threshold
13.4 eˉ
Output
Bit depth
8/12 Bit
Monochrome pixel formats
Mono8, Mono12, Mono12Packed
YUV color pixel formats
YUV411Packed, YUV422Packed, YUV444Packed
RGB color pixel formats
RGB8Packed, BGR8Packed
Raw pixel formats
BayerRG8, BayerRG12Packed, BayerRG12
General purpose inputs/outputs (GPIOs)
Opto-isolated I/Os
1 input, 3 outputs
Operating conditions/dimensions
Operating temperature
+5 °C to +45 °C housing temperature
Power requirements (DC)
12 to 24 VDC AUX or 802.3at Type 1 PoE
Power consumption
2.1 W at 12 VDC; 2.3 W PoE
Mass
80 g (with C-Mount)
Body dimensions (L × W × H in mm)
60.5 × 29.2 × 29.2 (including connectors)
Regulations
CE: 2014/30/EU (EMC), 2011/65/EU, including amendment 2015/863/EU (RoHS); FCC Class B; CAN ICES-003

Image optimization features:

  • Auto gain (manual gain control: 0 to 26 dB; 1 dB increments)
  • Auto exposure (manual exposure control: 83 µs to 2 s; 1 µs increments)
  • Auto white balance (G-030C only)
  • Color correction, hue, saturation (G-030C only)
  • Decimation
  • Defect pixel masking (user defined with Defect Mask Loader tool)
  • Gamma correction
  • One look-up table (LUT)
  • Piecewise Linear HDR mode
  • Region of interest (ROI), separate ROI for auto features
  • Reverse X/Y

Camera control features:

  • Event channel
  • Image chunk data
  • IEEE 1588 Precision Time Protocol (PTP)
  • Storable user sets
  • StreamBytesPerSecond (bandwidth control)
  • Stream hold
  • Sync out modes: Trigger ready, input, exposing, readout, imaging, strobe, GPO
  • Temperature monitoring (main board only)
  • Trigger over Ethernet (ToE) Action Commands

Mako G-030 is ideal for a wide range of applications including:

  • Robotics
  • Quality control
  • Inspection, surveillance
  • Industrial imaging
  • Machine vision
  • Logistics

Lenses
