Guppy F-036

Guppy

F-036

  • IEEE 1394a camera
  • Lightweight
  • Robust design
  • Machine vision camera

Ultra-compact, inexpensive high contrast VGA camera with HDR mode

The Guppy F-036B/F-036C is an ultra-compact, inexpensive VGA camera for applications with high contrasts. It is equipped with a CMOS sensor by ON Semiconductor (Aptina) which supports the High Dynamic Range (HDR) mode. At full resolution, it runs at up to 58 frames per second. Higher frame rates can be reached by a smaller area of interest (AOI).

  • Specifications
  • Features
  • Applications
  • Quantum efficiency
  • Downloads
  • Accessories
Interface
IEEE 1394a - 400 Mb/s, 1 port
Resolution
752 (H) × 480 (V)
Sensor
OnSemi MT9V022
Sensor type
CMOS
Sensor size
Type 1/3
Cell size
6 µm x 6 µm
Lens mount
C-Mount, CS-Mount
Frame rate
64 fps
ADC
10 Bit
Output
Bit depth
8 Bit
Mono modes
Mono8
Color modes RGB
n/a
Raw modes
Raw8
General purpose inputs/outputs (GPIOs)
TTL I/Os
1 input, 3 outputs
RS-232
1
Operating conditions/dimensions
Operating temperature
+5 °C to +45 °C
Power requirements (DC)
8 V to 36 V
Power consumption (@12 V)
<2 W
Mass
50 g
Body dimensions (L × W × H in mm)
48.2 × 30 × 30 (including connectors)
Regulations
CE, RoHS, REACH, WEEE, FCC
  • High Dynamic Range (HDR) mode
  • Reverse X/Y
  • Look-up table (LUT)
  • Binning
  • Area of interest (AOI), separate AOI for auto features
  • Auto gain (0 to 12 dB)
  • Auto exposure (179 µs to 979 ms)
  • Auto white balance
  • Storable user sets

The CMOS sensor of the Guppy F-036B/F-036C has no blooming and supports the High Dynamic Range (HDR) mode. For this reason, this FireWire camera is made for applications with intense illumination and high contrasts.

  • Surveillance and Security
  • Inspection and Control
  • Robotics
  • ITS/Traffic monitoring
  • Applications with high contrasts
Lenses

Please note: This selector filters lenses on technical criteria only. To find the right lens for your application requirements, please ask our Sales and Support teams for advice.

Lens
Manufacturer
Mount
Focal Length
F-Stop
Sensor size
Bookmark
{{lens.manufacturer.title}} {{lens.id}} {{lens.id}}
{{lens.manufacturer.title}}
{{lens.mount.title}}
{{lens.focalLength}} mm
{{lens.fStop.title}}
{{lens.sensorSize.title}}

Interface cables
Interface Cable
Description
Camera Interface
Bookmark
{{interfaceCable.manufacturer.title}} {{interfaceCable.partNumber}} {{interfaceCable.partNumber}}
{{interfaceCable.description}}
{{joinObjects(interfaceCable.cameraInterfacefilter)}}

Interface cards
Interface Card
Description
Camera Interface
Bookmark
{{interfaceCard.manufacturer.title}} {{interfaceCard.partNumber}} {{interfaceCard.partNumber}}
{{interfaceCard.description}}
{{joinObjects(interfaceCard.cameraInterfacefilter)}}

Trigger, I/O & power cables
Cable
Description
Camera Series
Bookmark
{{trigger.manufacturer.title}} {{trigger.partNumber}} {{trigger.partNumber}}
{{trigger.description}}
{{series.title}}{{$last ? '' : ', '}}

Hubs & Repeaters
Hubs & Repeaters
Description
Camera Interface
Bookmark
{{networking.manufacturer.title}} {{networking.partNumber}} {{networking.partNumber}}
{{networking.description}}
{{networking.cameraInterfacefilter.title}}

Tripod adapters
Tripod Adapter
Description
Camera Series
Bookmark
{{tripodAdapter.manufacturer.title}} {{tripodAdapter.partNumber}} {{tripodAdapter.partNumber}}
{{tripodAdapter.description}}
{{series.title}}{{$last ? '' : ', '}}

Power supplies
Power Supply
Description
Camera Series
Bookmark
{{powerSupply.manufacturer.title}} {{powerSupply.partNumber}} {{powerSupply.partNumber}}
{{powerSupply.description}}
{{series.title}}{{$last ? '' : ', '}}

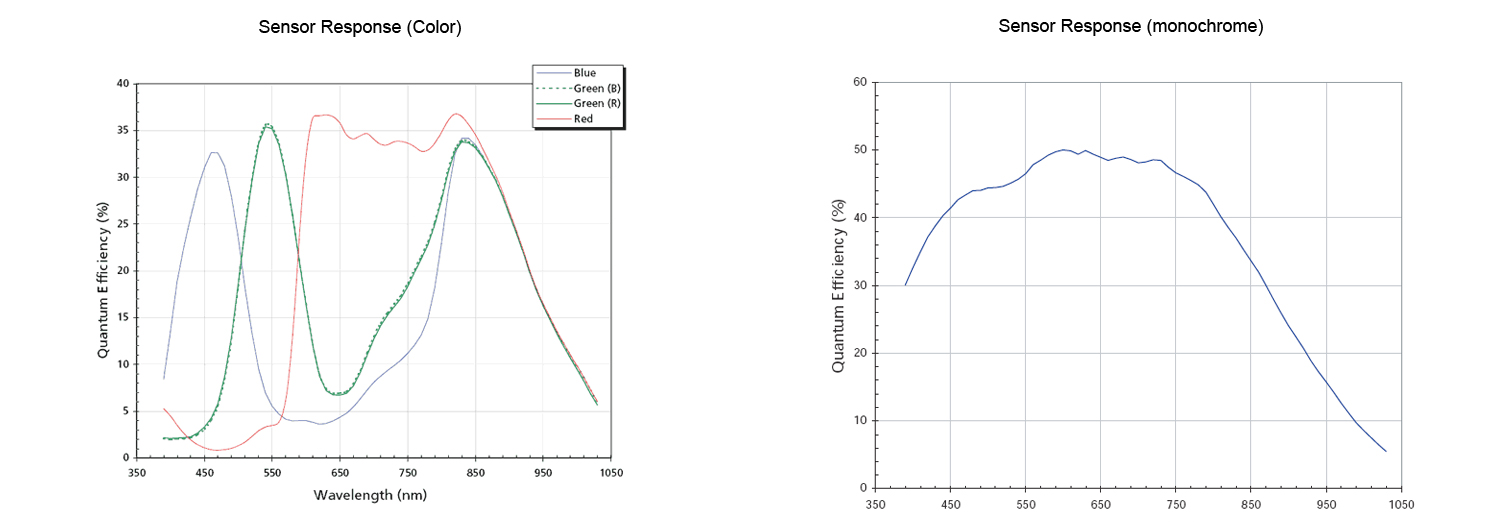

Micron/Aptina MT9V022 CMOS Progressive sensor graph
