Goldeye G1 CL-032 SWIR

Goldeye G1

CL-032 SWIR

  • Goldeye CL-032 SWIR NIR camera with InGaAs sensor, 636 × 508 pixels, Peltier cooling

NIR camera with InGaAs sensor, 636 x 508 pixels, Peltier cooling



The Goldeye CL-032 NIR is an NIR (near-infrared) camera. It has a spectral response from 900 nm to 1700 nm. Its InGaAs sensor features high sensitivity, very good linearity, and a high damage threshold against intense illumination. The camera is available with Peltier cooling. The Peltier cooling is ideal for applications with long exposure times, or for exact temperature measurements.



Benefits and features:

  • InGaAs sensor, spectral range 900 nm to 1700 nm (NIR, near-infrared)
  • 14-bit digital processing
  • Camera Link interface
  • 30 fps/30 Hz
  • Peltier cooling for long exposure times and exact temperature measurements
  • C-Mount (Goldeye CL-32 NIR Cool)
  • F-Mount (Goldeye CL-032 NIR F-Mount Cool)





Models:

Goldeye CL-032 NIR Cool

  • Spezifikationen
  • Features
  • Applikationen
  • Quanteneffizienz
  • Downloads
  • Zubehör
Interface
Camera Link Base
Auflösung
636 (H) × 508 (V)
Sensor
InGaAs FPA 636 x 508
Sensortyp
InGaAs
Sensorgröße
No standard size
Zellgröße
25 µm x 25 µm
Objektivanschluss
C-Mount, F-Mount
Framerate
30 fps
Output
General purpose Inputs/Outputs (GPIOs)
Betriebsbedingungen/Abmessungen
Konformität
CE (2004/108/EC), RoHS (2011/65/EU), WEEE (2012/19/EU), FCC Class B
  • Gain, up to factor 20 at short exposure times
  • Exposure time 64 µs to 1 s
  • Shipped with built-in correction data sets
  • Gain/offset correction (NUC / non-uniformity correction) for each pixel
  • Bad pixel correction
  • Background (FPN) correction
  • Continuous mode (image acquisition with maximum frame rate)
  • Image On Demand mode (triggered image acquisition)


In combination with Allied Vision’s AcquireControl software, extensive image analysis functions are available:

  • Pseudo color LUT with several color profiles
  • Auto contrast
  • Auto brightness
  • Analyze multiple regions (rectangular, circle) within the image
  • Real-time statistics and histogram display

Goldeye NIR cameras are very sensitive in the NIR spectrum, show excellent linearity, and tolerate intense illumination. They are the perfect choice for numerous NIR applications:

  • Near-infrared imaging
  • Thermal imaging of hot objects (in a range of 250°C to 800°C)
  • Imaging spectroscopy
  • Laser beam profiling
  • Sorting according to plastic
  • Semiconductor inspection
  • Water or moisture detection
  • Medical science and biology
  • Vision enhancement
Objektivs

Achtung: Dieser Selector filtert Objektive ausschließlich nach technischen Kriterien. Um die richtige Optik für Ihre eigenen Anforderungen zu finden, lassen Sie sich bitte von unseren Vertrieb- und Support-Teams beraten.

Objektiv
Hersteller
Anschluss
Brennweite
F-Stop
Sensorgröße
Merken
{{lens.manufacturer.title}} {{lens.id}} {{lens.id}}
{{lens.manufacturer.title}}
{{lens.mount.title}}
{{lens.focalLength}} mm
{{lens.fStop.title}}
{{lens.sensorSize.title}}

Interface-Kabel
Kabel
Beschreibung
Kamera Interface
Merken
{{interfaceCable.manufacturer.title}} {{interfaceCable.partNumber}} {{interfaceCable.partNumber}}
{{interfaceCable.description}}
{{joinObjects(interfaceCable.cameraInterfacefilter)}}

Interface-Karten
Interface-Karte
Beschreibung
Kamera Interface
Merken
{{interfaceCard.manufacturer.title}} {{interfaceCard.partNumber}} {{interfaceCard.partNumber}}
{{interfaceCard.description}}
{{joinObjects(interfaceCard.cameraInterfacefilter)}}

Trigger, I/O & power cables
Kabel
Beschreibung
Kamera Serie
Merken
{{trigger.manufacturer.title}} {{trigger.partNumber}} {{trigger.partNumber}}
{{trigger.description}}
{{series.title}}{{$last ? '' : ', '}}

Hubs & Repeaters
Hubs & Repeaters
Beschreibung
Kamera Interface
Merken
{{networking.manufacturer.title}} {{networking.partNumber}} {{networking.partNumber}}
{{networking.description}}
{{networking.cameraInterfacefilter.title}}

Tripod adapters
Tripod Adapter
Beschreibung
Kamera Serie
Merken
{{tripodAdapter.manufacturer.title}} {{tripodAdapter.partNumber}} {{tripodAdapter.partNumber}}
{{tripodAdapter.description}}
{{series.title}}{{$last ? '' : ', '}}

Power supplies
Power Supply
Beschreibung
Kamera Serie
Merken
{{powerSupply.manufacturer.title}} {{powerSupply.partNumber}} {{powerSupply.partNumber}}
{{powerSupply.description}}
{{series.title}}{{$last ? '' : ', '}}

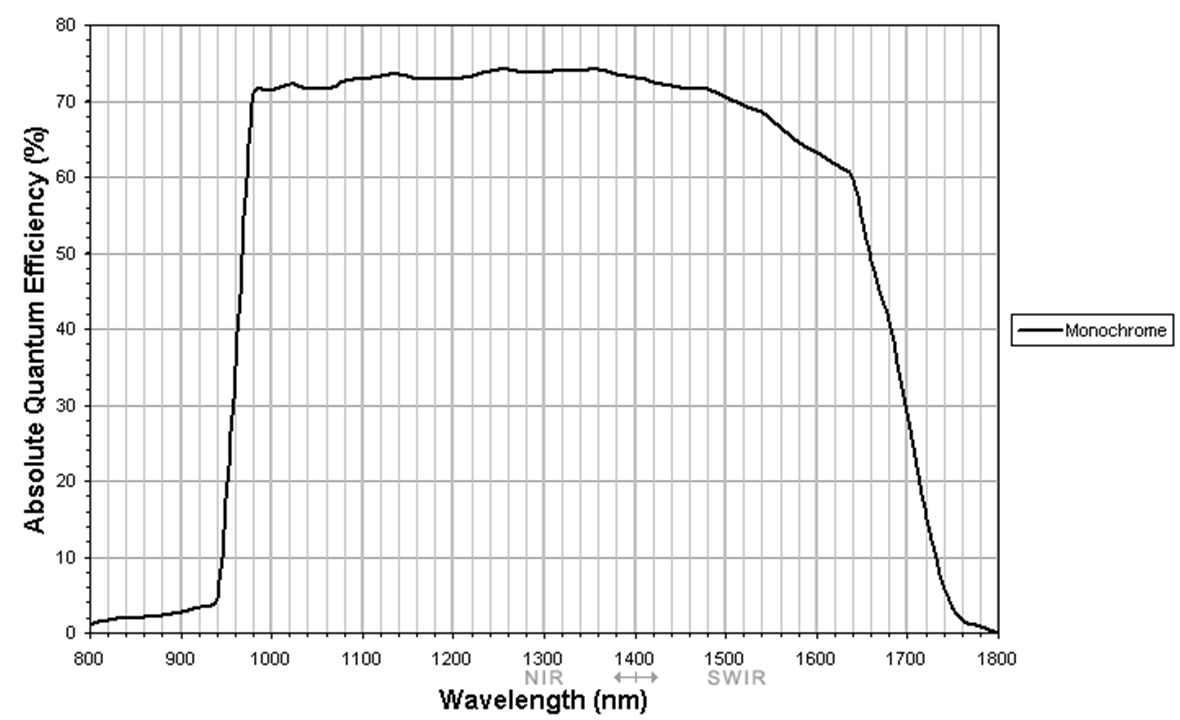

InGaAs FPA 636 x 508 InGaAs sensor graph
